SuperStorage 6119P-ACR12N4L
TEKLİF AL
Supermicro SuperStorage Server 6119P-ACR12N4L – 1U – 12x SATA/SAS + 4x NVMe – LSI 3224 12G SAS – Dual 25GbE – 800W Redundant
SSG-6119P-ACR12N4L
Açıklama
| Main Specifications | |
| Series | SuperStorage |
| Supported Processor | Intel Xeon Scalable Processors |
| System Bus | Dual UPI up to 10.4 GT/s |
| Memory Technology | DDR4 ECC Reg |
| Chipset | Intel C621 |
| Form Factor | 1U |
| Color | Black |
| Backplane | NVMe / SAS3 / SATA3 direct-connect backplane |
| Detailed Specifications | |
| Memory Slots | 16x 288-pin DIMM Sockets |
| Max Memory Support | Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM |
| Graphics | ASPEED AST2500 BMC |
| Ethernet | Dual LAN with SOC Mellanox CONNECTX-4 LX EN 25GbE |
| Serial ATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| SAS | SAS3 (12Gbps) via Broadcom 3224/3216 SAS3 IT mode |
| Power | 800W Redundant Power Supplies with PMBus |

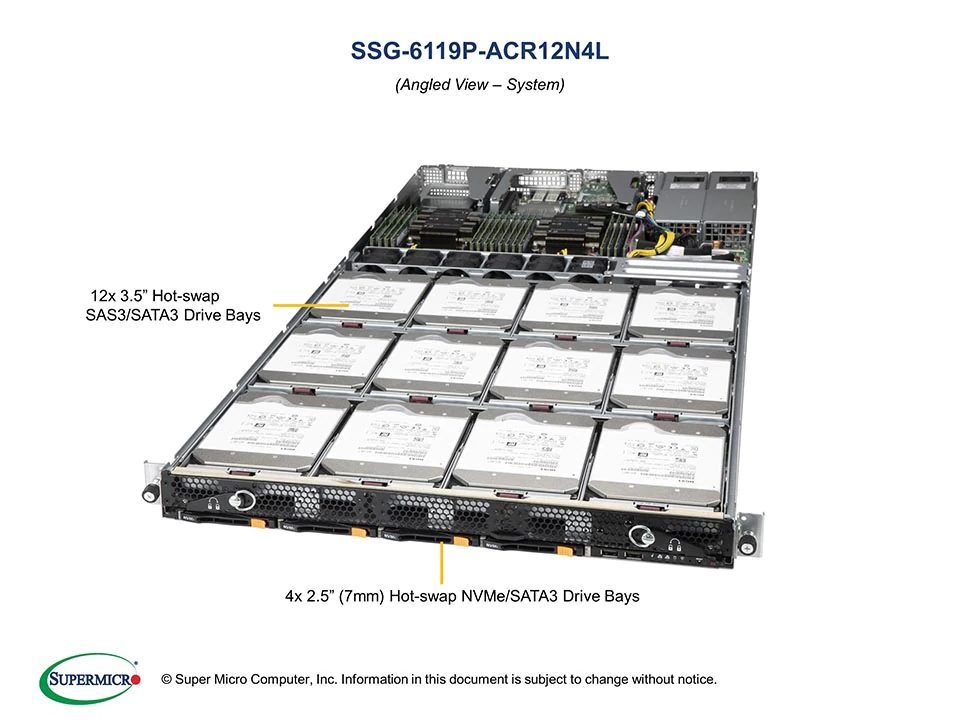

| External Bays | 12 Hot-swap 3.5″ SAS3/SATA3 HDD bays 4 Hot-swap 2.5″ 7mm NVMe/SATA drive bays |
| M.2 | 2x PCIe 3.0 x4/SATA, Form Factor: 2280 |
| Expansion Slots | 1x low-profile PCIe 3.0 x16 1x low-profile PCIe 3.0 x8 AIOM x16 AOM storage slot (occupied by SAS3 AOM SAS3 HBA) |
| Front Panel | Power On/Off button Universal Information (UID) button Power status LED Hard drive activity LED Network activity LEDs UID LED |
| BIOS | AMI 32Mb SPI Flash ROM |
| Cooling | 6x 40x40x56mm 20.5K-17.6K RPM counter-rotating fans |
| Dimensions (WxHxD) | 17.6″ (447mm) x 1.7″ (43mm) x 37.5″ (952.5mm) |
| Gross Weight | 39.5 lbs (18 kg) |
| PCI Express x16 | 1 |
| PCI Express x8 | 1 |
| USB Ports | 2 USB 2.0 ports (front via header) 2 USB 2.0 ports (rear) Micro USB (COM Port) |

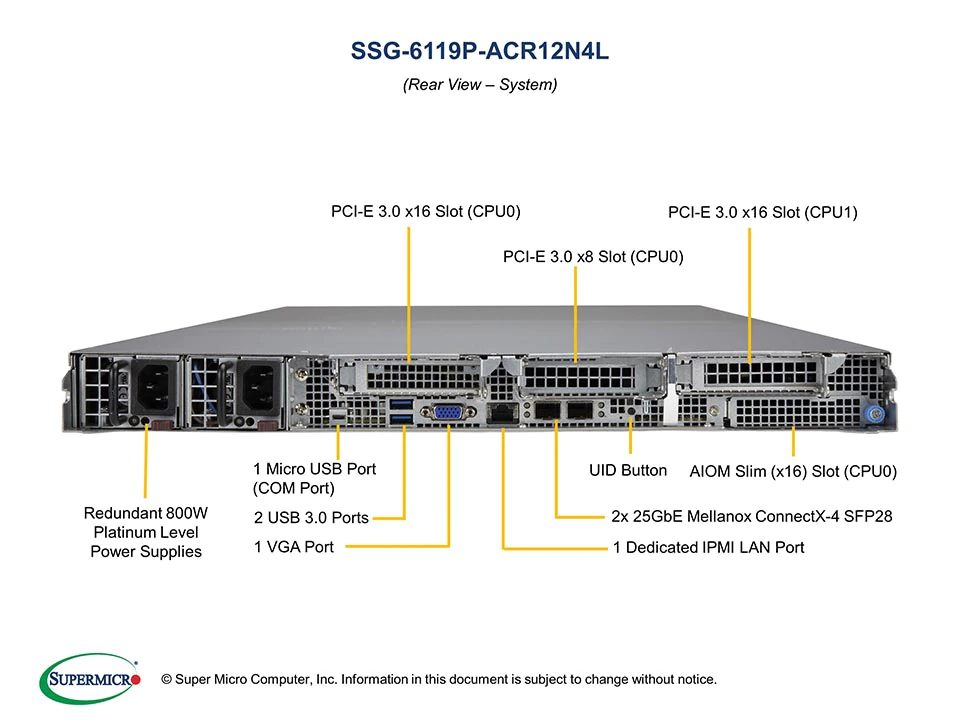

| LAN Ports | 2x 25G Ethernet SFP28 LAN ports 1 RJ45 Dedicated IPMI LAN port |
| SAS 12Gbps Controller | Broadcom LSI SAS3 3216 HBA (IT Mode) |
| SAS 12Gbps Ports | 16 |
| SATA 6Gbps AHCI Controller | Intel C621 chipset |
| M.2 Controller | 2 |
| Integrated Graphics | Yes |
| VGA Ports | 1 |
| Trusted Platform Module | 1x TPM Header |
Ek bilgi
| Marka |
Supermicro |
|---|---|
| Kategori |
Storage Server |
| Rackmount |
1U Rackmount |
| Processor |
2nd Gen Xeon Scalable |
| Socket |
Dual Socket |
| Memory |
16 DIMM Slot |
| Disk Desteği |
12 Hot-Swap |
| NVMe Desteği |
4x 2.5" NVMe |
| HDD Slot |
2.5" ,3.5" |
| Güç Kaynağı |
Yedekli (Redundant) |
| Global SKU (Aktif Stok) |
Hayır |
About Supermicro
Supermicro Hakkında
Yüksek performanslı, yüksek verimli sunucu teknolojisi ve inovasyonda küresel bir lider olarak, veri merkezi, bulut bilgi işlem, kurumsal BT, büyük veri, HPC ve yerleşik pazarlar için uçtan uca yeşil bilgi işlem çözümleri geliştiriyor ve sağlıyoruz. Building Block Solutions® yaklaşımımız, geniş bir SKU yelpazesi sunmamızı sağlar ve gereksinimlerinize göre uygulama için optimize edilmiş çözümler oluşturmamızı ve sunmamızı sağlar.
