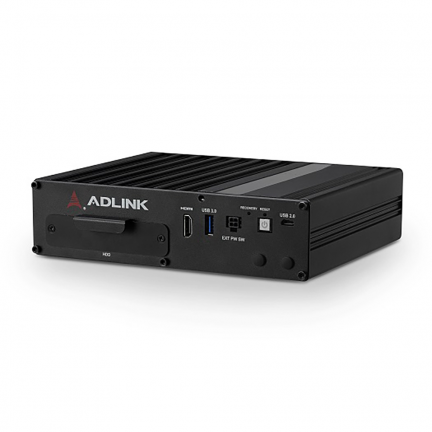

Endüstriyel sınıf DLAP 301 Nano, Edge'de doğru ve hızlı görüntü işleme, bilgisayarla görme, derin öğrenme çıkarımı için optimize edilmiş 8 kanallı PoE Edge AI Çıkarım platformudur.

SYSTEM CORE
Processor	NVIDIA® Jetson™ Nano
Memory	4GB LPDDR4
eMMC	16GB eMMC 5.1
GRAPHIC OUTPUT
Graphic Output	1x HDMI 2.0
FRONT PANEL I/O INTERFACE
USB 3.0	1x Type A
USB 2.0	OTG
Graphic Output	1 vertical HDMI connector
REAR PANEL I/O INTERFACE
Ethernet	1x GbE
POE	8x PoE (15W each, 10/100 Ethernet)
USB 3.0	2x Type A
Serial Port	2x COM
DIO	4x input/ 4x output w/ 1.5KV isolation
STORAGE DEVICE
SATA Extension	2.5" SATA SSD
POWER REQUIREMENTS
DC Input	12V DC input
AC Input	AC adapter AC-DC board
Fail Reset	Reset/recovery button
Power LED Indicator	Power button
MECHANICAL
Dimensions	210 x 170 x 55 (mm)
Weight	TBD
Mounting	Wall mount/ DIN-RAIL
ENVIRONMENTAL
Operating Temperature	Standard: 0°C ~ +50°C Extended: -20°C ~ +70°C
Operating Humidity	~95% @40C (non-condensing)
Storage Temperature	-40°C~85°C
