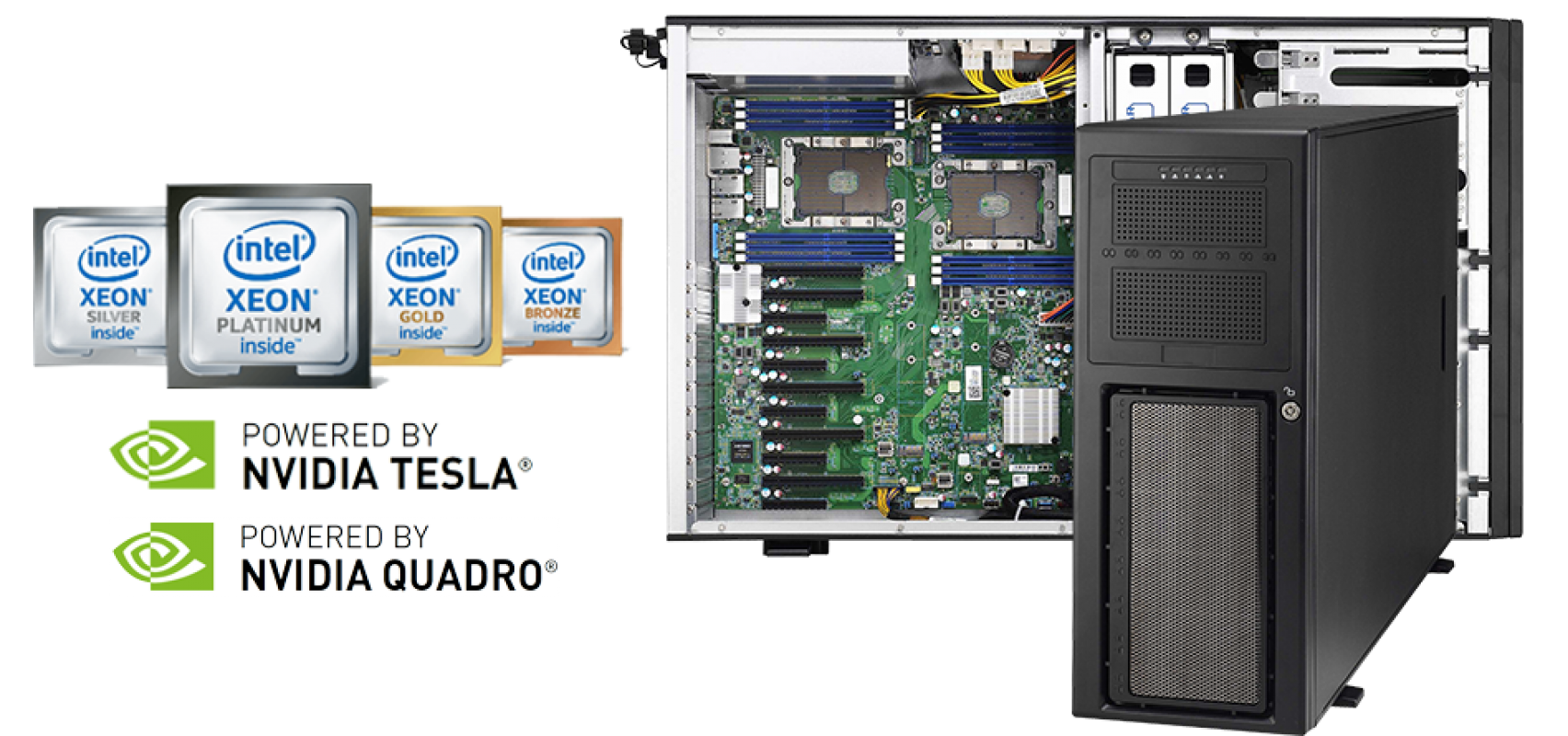

(EOL) Purley 4U Pedestal GPU Server for HPC, AI & Rendering Applications, Up to 5 x Nvidia GPU

(EOL) Purley 4U Pedestal GPU Server for HPC, AI & Rendering Applications, Up to 5 x Nvidia GPU - Görsel 2

(EOL) Purley 4U Pedestal GPU Server for HPC, AI & Rendering Applications, Up to 5 x Nvidia GPU - Görsel 3

GPU Server, Single Socket

(EOL) Purley 4U Pedestal GPU Server for HPC, AI & Rendering Applications, Up to 5 x Nvidia GPU

TEKLİF AL

Purley 4U Pedestal GPU Server for HPC, AI & Rendering Applications, Up to 5 x Nvidia GPU

Kategoriler: GPU Server, Single Socket Etiketler: AI & Rendering Applications, GPU Server, HPC, PNY GPU Server, Purley 4U Pedestal GPU Server for HPC, Up to 5 x Nvidia GPU Marka: PNY

Form Faktör 4U

CPU Intel Xeon Gen3

Disk 5x Hotswap

Benzer Ürünleri Gör Satış Ekibine Sor

Stok Sorunuz Hızlı teslimat seçenekleri mevcut

Teklif İste

Yerinde Destek

Opsiyonel 24/7 Destek

Yerel Stok

Major Ürünlerde Hızlı Teslimat

Kurulum

opsiyonel

Teknik Özellikler

Dimensions	4U Pedestal / Rackmount 700 x 427 x 176 (D x W x H, mm)
CPU	2 x Intel® Xeon® Scalable Skylake & Cascade Lake Platinum / Gold / Silver / Bronze Family Processors CPU TDP up to 205W Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket	2 x LGA 3647
Chipset	Intel® C621 Express Chipset
Memory	Supported DIMM: 12 x DIMM slots DIMM Type / Speed: DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666MHz/2933MHz Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR Memory Channel: 6 channels per CPU Memory Voltage: 1.2V
LAN	Port: 2 x 10GbE ports / 1 x PHY Controller: Intel X550-AT2 PHY: Realtek RTL8211E
Video	Connector type: D-Sub 15-pin Resolution: Up to 1920x1200 Chipset: Aspeed AST2500
External Drive Bays	Type: 3 x 5.25" device bays for optic drives Type: 4 or 8 x 2.5"/3.5" Hot-Swap HDD/SSD bays (4 for -100P SKU, 8 for -100A SKU) Backplane Support: SAS 6Gb/s /SATA 6Gb/s Supported HDD Interface: 4 or 8 x SATA 6Gb/s
Storage	PCIe NVMe M.2 Connector: 2 x 22110/2280 PCIe NVMe M.2 slots (SATA interfaces) SATA Connector: 2 x SATA-DOM Controller: Intel C621 Speed: 6.0 Gb/s RAID: S/W RAID 0/1/10/5 (Intel RSTe) sSATA Connector: 2 x Mini-SAS HD (8-ports) Controller: Intel C621 Speed: 6.0 Gb/s RAID: S/W RAID 0/1/10/5 (Intel RSTe)
SAS	Supported via add-on SAS card in option (software or hardware RAID)
SATA	4 x SATA 6Gb/s for -100P SKU 8 x SATA 6Gb/s for -100A SKU
RAID	According to the RAID card option implemented
Expansion Slots	5 x PCIe Gen3 x16 slots (FH/FL/double-width) for NVIDIA Quadro/Tesla GPU 1 x PCIe Gen3 x16 slot (FH/FL/single-width)
Front Panel	Buttons: 1 x RST / 1 x ID / 1 x PWR w/ LED LEDs: 1 x HDD / 2 x LAN / 1 x ID / 1 x System Event I/O Ports: 2 x USB 3.0 ports
I/O Ports	USB: 2 x USB3.0 ports (at rear) / 2 x USB3.0 ports (at rear) COM: 1 x DB-9 COM port VGA: 1 x D-Sub 15-pin port RJ-45: 2 x10GbE ports, 1 x PHY dedicated for IPMI
TPM	1 x TPM header with LPC interface Optional TPM 1.2/2.0 kits available
Power Supply	Type: Redundant PSU Input Range: AC 100-127V/24A / AC 220-240V/10A Output Watts: 1,968 Watts Efficiency: 80 plus Platinum Redundancy: 1+1
System Monitoring	Chipset: Aspeed AST2500 Temperature: Monitors temperature for CPU & memory & system environment Voltage: Monitors voltage for CPU, memory, chipset & power supply LED: Over temperature warning indicator / Fan & PSU fail LED indicator Others: Watchdog timer support
System Management	Onboard Chipset Onboard: Aspeed AST2500 AST2500 iKVM Features: IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub AST2500 IPMI Features: 24-bit high quality video compression / 10/100/1000 Mb/s MAC interface
BIOS	Brand / ROM Size: AMI / 32MB Features: Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1
OS Supported (Contact us if you can't find your OS version here)	Win10 1709-Nov. Windows Server 2012 R2 update Windows Server 2016RHEL 6.9 X64 RHEL 7.4 x64 SLES 11 SP4 x64 SLES 12 x64 CentOS 7.4 1708 X64 FreeBSD 11.1 X64 Ubuntu 17.04 X64
Weight	Gross Weight: 40 kg Net Weight: 34 kg
Packaging Content	1 x PNYWKS45000000-100A (for NVIDIA Quadro GPU) or PNYWKS45000000-100P (for NVIDIA Tesla GPU) 1 x Quick installation guide 2 x CPU heatsinks 1 x CPU airduct 1 x GPU airduct 1 x Slide rail kit GPU power cables GPU holder brackets PSU power cables
System Fans	3 x 12cm hot-swap fans for -100A SKU 6 x 12cm hot-swap fans for -100P SKU
Operating Properties	Operating Temperature: 10°C ~ 35°C (50°F~ 95°F) Non-operating Temperature: - 40°C ~ 70°C (-40°F ~ 158°F) In/Non-operating Humidity: 90%, non-condensing at 35°C Contact us for details about operating temperature limitation using different GPUs
