(EOL) Single Root Complex Purley 4U GPU Server for Deep Learning Applications

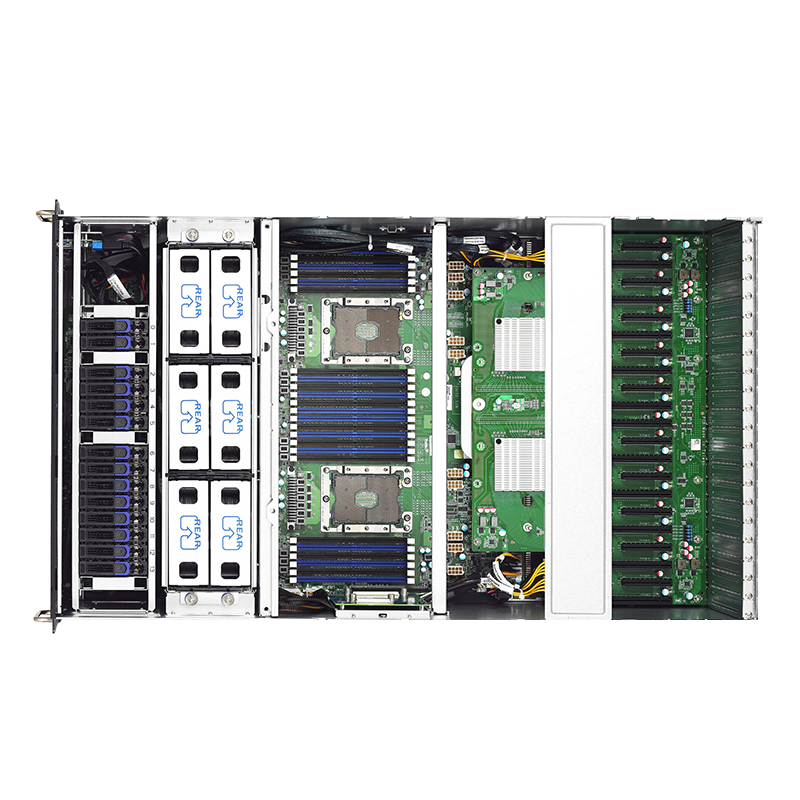

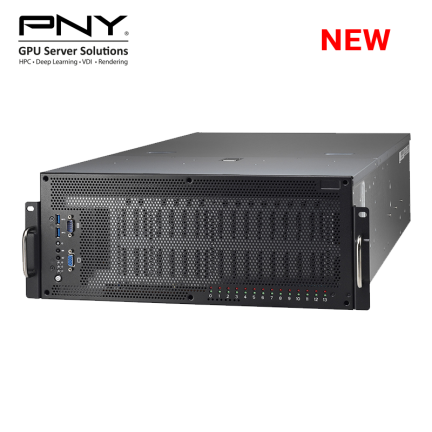

(EOL) Single Root Complex Purley 4U GPU Server for Deep Learning Applications - Görsel 2

(EOL) Single Root Complex Purley 4U GPU Server for Deep Learning Applications - Görsel 3

GPU Server, Single Socket

(EOL) Single Root Complex Purley 4U GPU Server for Deep Learning Applications

TEKLİF AL

Single Root Complex Purley 4U GPU Server for Deep Learning Applications

Kategoriler: GPU Server, Single Socket Etiketler: Deep Learning, GPU Server, PNY GPU Server, Single Root Complex Purley 4U GPU Server for Deep Learning Applications Marka: PNY

Form Faktör 4U

CPU Intel Xeon Gen3

Disk 14x Hotswap

→ Yeni Nesil Ürünü Gör Benzer Ürünleri Gör Satış Ekibine Sor

Stok Sorunuz Hızlı teslimat seçenekleri mevcut

Teklif İste

Yerinde Destek

Opsiyonel 24/7 Destek

Yerel Stok

Major Ürünlerde Hızlı Teslimat

Kurulum

opsiyonel

Teknik Özellikler

Dimensions	4U 770 x 438 x 176 (D x W x H, mm)
CPU	Intel® Xeon® Processor Scalable Family Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor CPU TDP up to 205W Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket	2 x LGA 3647
Chipset	PCH Intel® C621 Express Chipset Switch IC: 2 x PLX PEX8796
Memory	Supported DIMM: 24 x DIMM slots DIMM Type / Speed: DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR Memory Channel: 6 channels per CPU Memory Voltage: 1.2V
LAN	Port: 2 x 10GbE ports / 1 x GbE port dedicated for IPMI Controller: Intel X550-AT2 PHY: Realtek RTL8211E
Video	Connector Type: D-Sub 15-pin Resolution: Up to 1920x1200 Chipset: Aspeed AST2500
External Drive Bays	Type: 14 x 2.5" Hot-Swap HDD/SSD bays (with optional support for 4 x NVMe U.2 drives; additional controller card required)(with optional support for 4 x 3.5" drives) Backplane Support: SAS 12Gb/s /SATA 6Gb/s Default supported HDD Interface: 14 x SATA 6Gb/s
Storage	SATA Connector: 2 x Mini-SAS HD (8-ports) Controller: Intel C621 Speed: 6.0 Gb/s RAID: S/W RAID 0/1/10/5 (Intel RSTe) sSATA Connector: 2 x SATA III / 1 x Mini-SAS HD (4-ports) Speed: 6.0 Gb/s RAID: S/W RAID 0/1/10/5 (Intel RSTe)
SAS	Supported via add-on SAS Card (see below "Expansion Slots")
SATA	14 x SATA 6Gb/s
RAID	According to the RAID card option implemented
Expansion Slots	PCIe: 11 x FH FL PCIe Gen3 x16 slots + 1 x PCIe Gen3 x16 Proprietary Mezzanine slot Pre-install Internal OCP Riser Card: 1 x M2217-L16-IO (for internal SAS controller card)
Front Panel	Buttons: 1 x RST / 1 x ID / 1 x PWR w/ LED LEDs: 1 x HDD / 1 x ID / 1 x Warning / 3 x LAN I/O Ports: 1 x VGA port / 2 x USB 3.0 port / 1 x COM Port
I/O Ports	USB: 2 x USB3.0 ports (at rear) / 2 x USB3.0 ports (at front) COM: 1 x DB-9 COM port (at front) VGA: 1 x D-Sub 15-pin port RJ-45: 1 x GbE port dedicated for IPMI
TPM	1 x TPM header with LPC interface Optional TPM 1.2/2.0 kits available
Power Supply	Type: Redundant PSU Input Range: AC 100-127V/12.9A / AC 200-240V/9.5A Frequency: 47-63 Hz Output Watts: 3,000 Watts (100-127Vac input) / 4,800Watts (200-240Vac input) Efficiency: PFC / 80 plus Platinum Redundancy: 3+1
System Monitoring	Chipset: Aspeed AST2500 Temperature: Monitors temperature for CPU & memory & system environment Voltage: Monitors voltage for CPU, memory, chipset & power supply LED: Over temperature warning indicator / Fan & PSU fail LED indicator Others: Watchdog timer support
System Management	Onboard Chipset Onboard: Aspeed AST2500 AST2500 iKVM Features: IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub AST2500 IPMI Features: 24-bit high quality video compression / 10/100/1000 Mb/s MAC interface
BIOS	Brand / ROM Size: AMI / 32MB Features: Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1
OS Supported	Windows Server 2016 x64 Windows Server 2012 R2 x64 Win 10 x64 (1703) Win 10 x64 (1709) RHEL 6.9 X64 RHEL 7.3 x64 RHEL 7.4 x64 CentOS 6.9 x64 CentOS 7.3 x64 CentOS 7.4 x64 Suse 11 SP4 Suse 12 SP2 Suse 12 SP3
Weight	45 kg (full package)
Packaging Content	1 x PNYSRA4X000000-100 1 x Quick installation guide 2 x CPU heatsinks 1 x Rail kit
System Fans	(5+1) x 12cm redundant hot-swappable fans
Operating Properties	Operating Temperature: 10°C ~ 35°C (50°F~ 95°F) Non-operating Temperature: - 40°C ~ 70°C (-40°F ~ 158°F) In/Non-operating Humidity: 90%, non-condensing at 35°C
