UP Workstation SYS-530A-IL

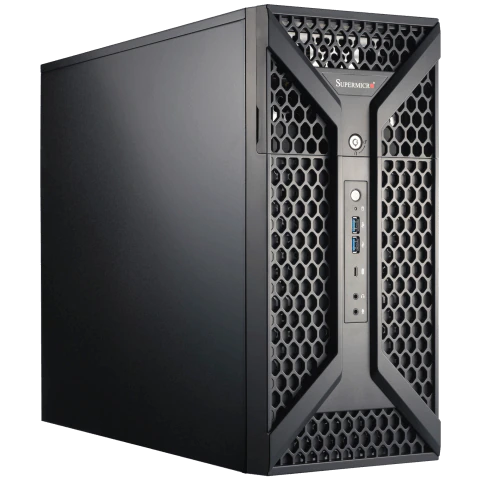

Super Workstation SYS-530A-IL Workstation

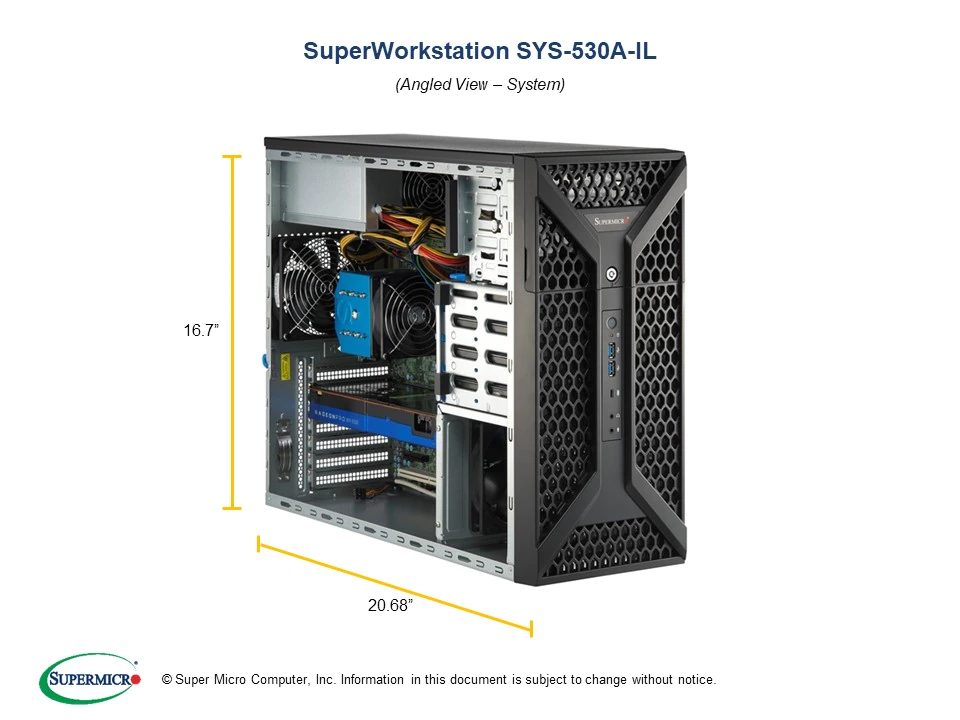

Super Workstation SYS-530A-IL Workstation - Görsel 2

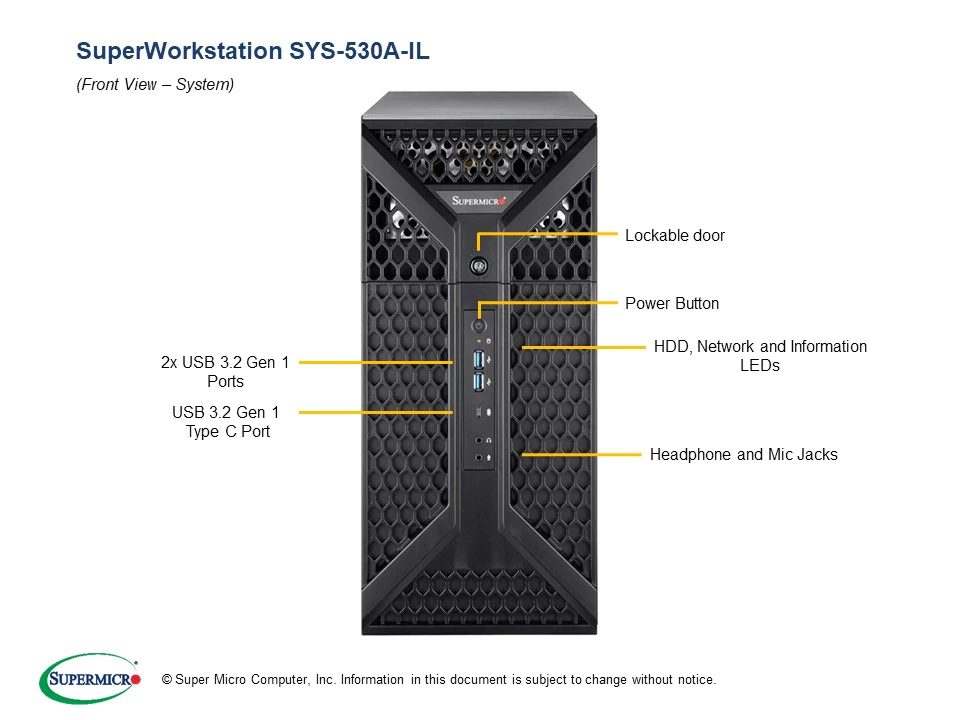

Super Workstation SYS-530A-IL Workstation - Görsel 3

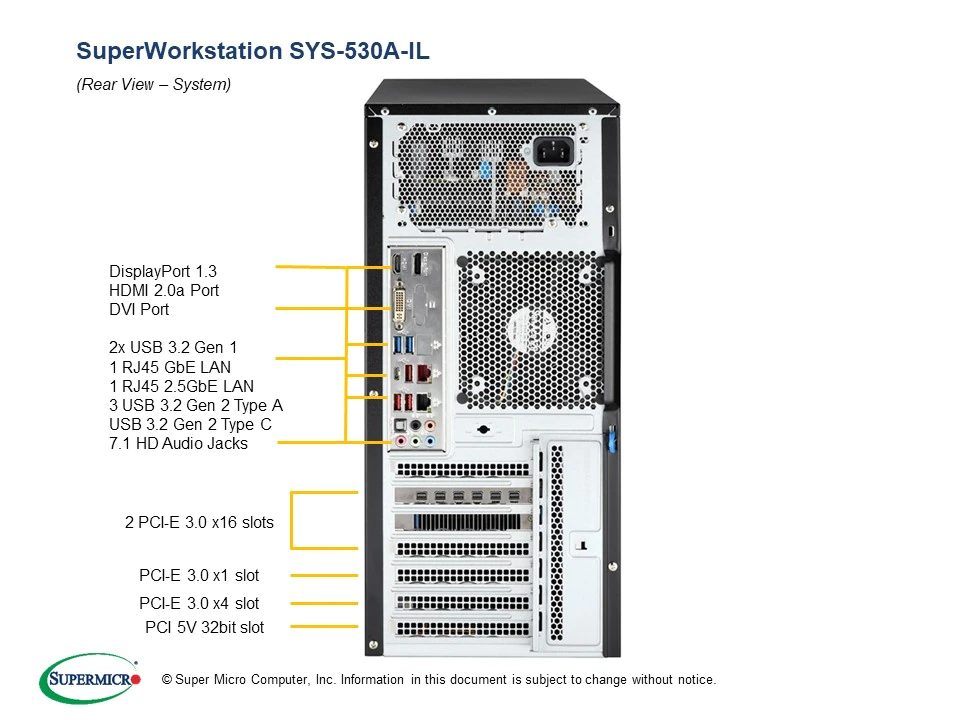

Super Workstation SYS-530A-IL Workstation - Görsel 4

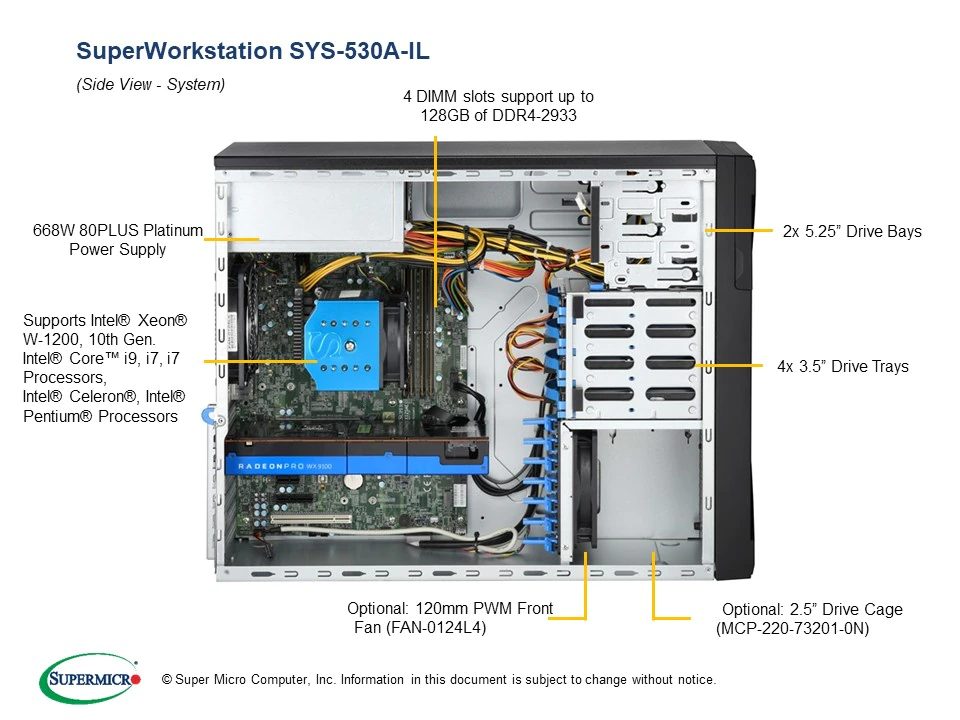

Super Workstation SYS-530A-IL Workstation - Görsel 5
, ,

Super Workstation SYS-530A-IL Workstation

TEKLİF AL

UP Workstation SYS-530A-IL
Stok kodu: SYS-530A-IL Kategoriler: , , Etiketler: , , , , Marka:
CPU 1 CPU
Bellek 4x DDR4 DIMM
Stok Sorunuz Hızlı teslimat seçenekleri mevcut
Teklif İste
Yerinde Destek
Opsiyonel 24/7 Destek
Yerel Stok
Major Ürünlerde Hızlı Teslimat
Kurulum
opsiyonel
Form Factor
  • Mid-Tower
CPU
  • Single Socket H5 (LGA-1200)
  • 10th Generation Intel® Core™ Processors,Intel® Xeon® W-1200 Processors
  • Support CPU TDP 125W
Cores
  • Up to 10C/20T; Up to 20MB Cache
Memory
  • Memory Capacity: 4 DIMM slots
  • Memory Type: 2933MHz ECC DDR4 UDIMM
Drive Bays
  • 4x 3.5" SATA drive bays
M.2
  • 2x PCI-E 3.0 x4
Peripheral Bays
  • 2x 5.25" drive bays
PCI-Express (PCI-E)
    • Slot 2: PCI-E 3.0 x4 FHFL
    • Slot 4: PCI-E 3.0 x16
    • Slot 6: PCI-E 3.0 x16
    • Slot 1: 5V PCI 32bit
(Slot#4 and Slot#6 can be configured as 16/NA or 8/8)
Fans
  • 1x 120mm Fan(s)
  • 1x 120mm Fan(s) (optional)
Chipset
  • Intel® W480
Network Connectivity
  • 1x 1GbE BaseT with Intel® i219LM
  • 1x 2.5GbE BaseT with Intel® i225V
SATA
  • 4 SATA (6Gbps) port(s)
USB
  • 3 USB 3.2 Gen 1 port(s) (1 front; 2 front)
  • 4 USB 3.2 Gen 2 port(s) (1 rear; 3 rear)
Serial Port
  • 1 COM Port(s) (1 header)
Software
  • SuperDoctor 5
Power Configurations
  • ACPI 6.0
Power Supply
  • 668W 80PLUS Platinum Power Supply

Tüm Özellikler

Marka Supermicro
Kategori WorkStation
Sunucu Node Sayısı 1 Node Server
Rackmount Mid-Tower
Processor 3rd Gen Intel® Xeon® Scalable
Socket Single Socket
Memory 4 DIMM Slot
Disk Desteği 4 Hot-Swap
NVMe Desteği 4x U.2 NVMe
M.2 NVMe Desteği 2x M.2 NVMe
HDD Slot 2.5" | 3.5"
Güç Kaynağı Yedekli (Redundant)
Global SKU (Aktif Stok) Hayır
CPU Soket 1 CPU
Bellek Desteği 4x DDR4 DIMM
