Supermicro SuperStorage Server SSG-2028R-DN2R48L - 48x NVMe - Dual 10-Gigabit Ethernet - 2000W Redundant
General Purpose Storage, STORAGE SERVER
SuperStorage 2028R-DN2R48L Storage (EOL)
TEKLİF AL
Supermicro SuperStorage Server SSG-2028R-DN2R48L – 48x NVMe – Dual 10-Gigabit Ethernet – 2000W Redundant
Form Faktör
2U
Disk
48x Hotswap
Stok Sorunuz
Teslim süresi konfigürasyon ve stoğa göre — kesin süre teklifte
Teslim süreleri ürüne, güncel stok durumuna ve ithalat/gümrük süreçlerine göre değişir. Kesin teslim tarihi siparişten önce satış ekibimizce teyit edilir.
Yerinde Destek
Opsiyonel 24/7 Destek
Yerel Stok
Stoktaki ürünlerde öncelikli teslimat
Kurulum
opsiyonel
(Complete System Only)
| Main Specifications | |
| Series | SuperStorage |
| Supported Processor | Intel Xeon Processor E5-2600 v4 / v3 Series |
| System Bus | 9.6 GT/s QPI |
| Memory Technology | DDR4 ECC Reg |
| Chipset | Intel C612 |
| Form Factor | 2U |
| Color | Black |
| Nodes in unit | 2 |
| Detailed Specifications | |
| Memory Slots | 16x 288-pin DIMM Sockets (per node) |
| Graphics | ASPEED AST2400 BMC |
| Ethernet | Intel® X540 Dual Port 10GBase-T |
| Serial ATA | SATA3 (6Gbps); RAID 0, 1 |
| Power | 2000W Redundant Power Supplies with PMBus |

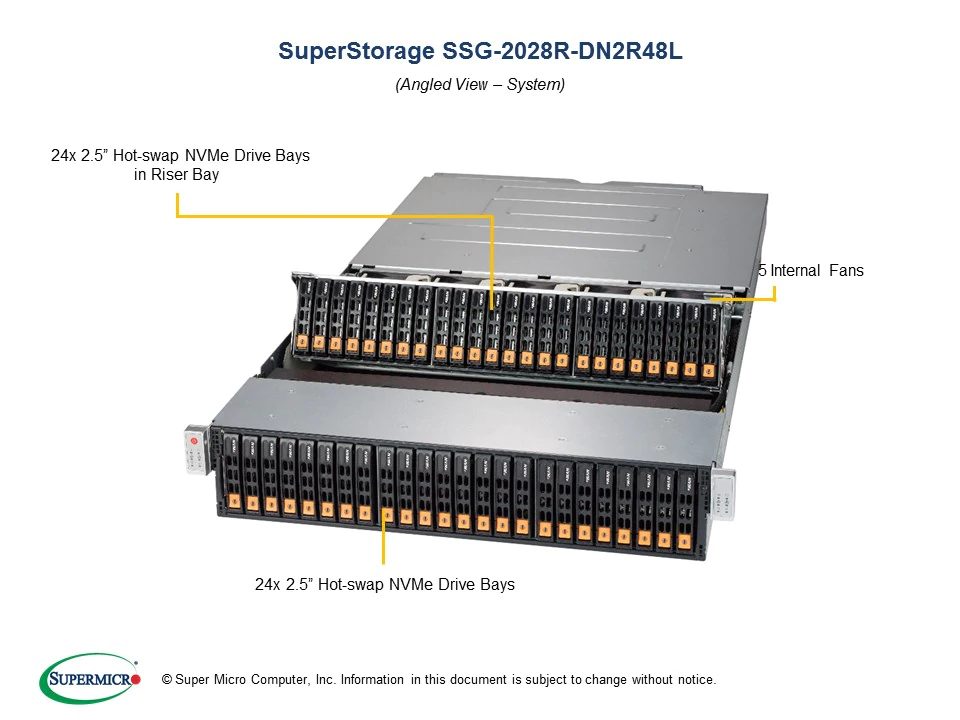

| External Bays | 48x Hot-swap 2.5" dual port NVMe drive bays |
| Expansion Slots | 1x PCI-E 3.0 x16 HHHL slot 1x PCI-E 3.0 x8 HHHL slot 1x SIOM slot |
| Management | Support for Intelligent Platform Management Interface v.2.0 |
| Front Panel | Power On/Off button Power LED Heartbeat LED 2 Network activity LEDs Power Fail LED Overheat/Fan Fail LED |

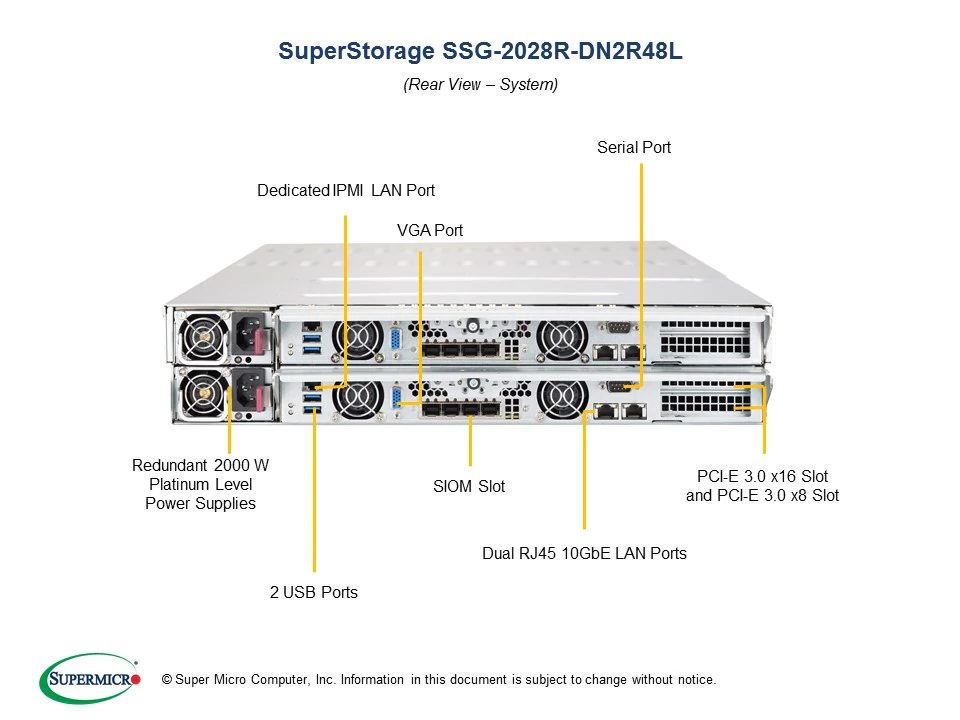

| Back Panel | 2x USB 3.0 ports 2x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port 1x VGA port |
| BIOS | 128Mb SPI Flash EEPROM with AMI BIOS |
| Cooling | 5x 8cm high-performance PWM fans |
| Dimensions (WxHxD) | 17.2" (437mm) x 3.5" (89mm) x 33.3" (846mm) |
| Gross Weight | 86.9 lbs (39.42 kg) |
| USB Ports | 3x USB 3.0 ports (2 rear, 1 Type A) |
| Serial Ports | 1x COM port via riser |
| LAN Ports | 2x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port |
| SATA DOM | 2x SATA DOM support with built-in power (per node) |
| Integrated Graphics | Yes |
| VGA Ports | 1 |
| Trusted Platform Module | 1 TPM Header |
Tüm Özellikler
| Marka | Supermicro |
|---|---|
| Kategori | General Purpose Storage | Storage Server |
| Rackmount | 2U Rackmount |
| Processor | Intel Xeon E5-2600v4 |
| Socket | Dual Socket |
| Sunucu Node Sayısı | 2 Node Server |
| Memory | 16 DIMM Slot |
| Disk Desteği | 48 Hot-Swap |
| NVMe Desteği | 48" 2.5" NVMe |
| HDD Slot | 2.5" |
| Güç Kaynağı | Yedekli (Redundant) |
| Global SKU (Aktif Stok) | Hayır |
| Form Faktör | 2U |
| Sürücü Yuvası | 48x Hotswap |
