SuperStorage 6029P-E1CR24L Storage (EOL)

Name: SuperStorage 6029P-E1CR24L Storage (EOL)
Brand: Supermicro
SKU: SSG-6029P-005-1
Availability: InStock

TEKLİF AL

Supermicro SuperStorage Server SSG-6029P-E1CR24L – 24x SATA/SAS – LSI 3008 12G SAS – 1600W Redundant

Form Faktör 2U

CPU Intel Xeon Gen5 / Gen4

Bellek 24x DDR4 DIMM

Disk 24x Hotswap

Stok Sorunuz Hızlı teslimat seçenekleri mevcut

Yerinde Destek

Opsiyonel 24/7 Destek

Yerel Stok

Major Ürünlerde Hızlı Teslimat

Kurulum

opsiyonel

(Complete System Only)

Main Specifications
Series	SuperStorage
Supported Processor	Intel Xeon Scalable Processors
System Bus	Dual UPI up to 10.4 GT/s
Memory Technology	DDR4 ECC Reg
Chipset	Intel C620
Form Factor	2U
Color	Black
Backplane	SATA3/SAS3 Expander
Detailed Specifications
Memory Slots	24x 288-pin DIMM Sockets
Max Memory Support	Up to 3TB 3DS ECC, DDR4-2666MHz in 24 DIMM slots
Graphics	ASPEED AST2500 BMC
Ethernet	Support SIOM Card for Multiple IO Options
Serial ATA	Intel® C620 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10,50
SAS	Broadcom 3008 SAS3, HW RAID
NVMe	4x optional hybrid NVMe bays
Power	1600W Redundant Power Supplies with PMBus

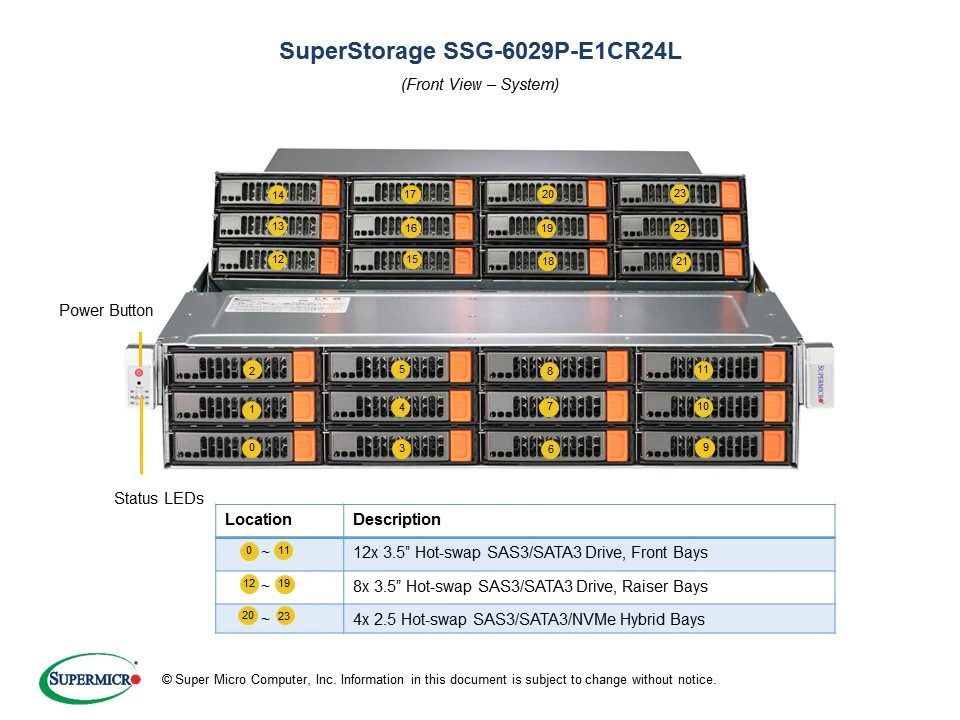

External Bays	24x 3.5" Hot-swap SAS3/SATA3 drive bays + 4x optional hybrid bays 2x 2.5" rear Hot-swap drive bays
Expansion Slots	2x PCI-E 3.0 x16 slots 1x PCI-E 3.0 x8
Management	Support for Intelligent Platform Management Interface v.2.0
Front Panel	Power On/Off button System Reset button Power status LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power fail LED

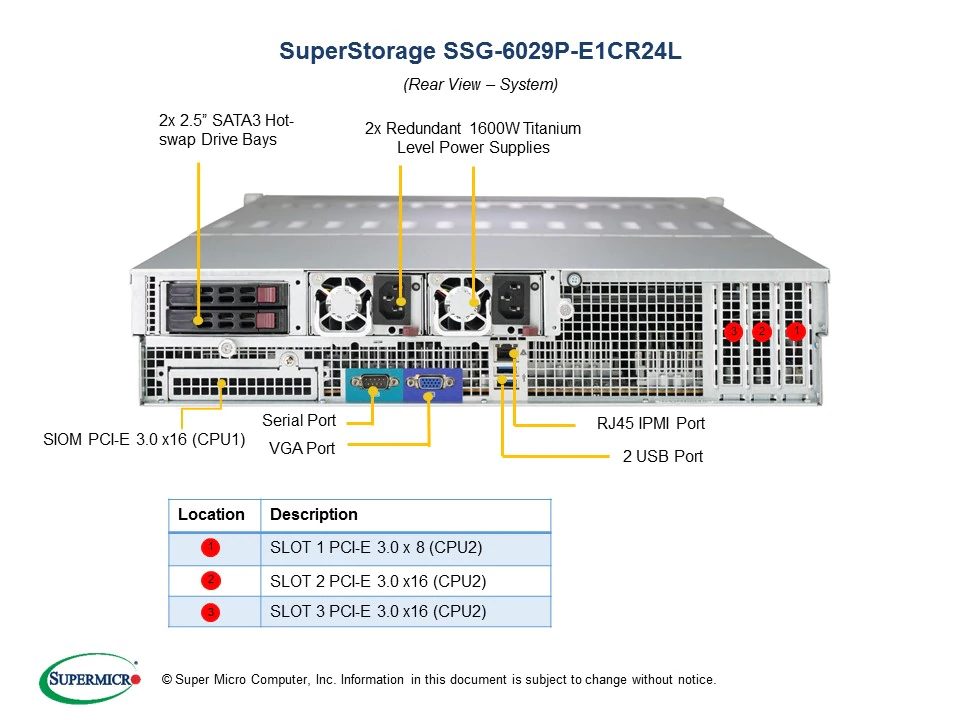

Back Panel	2x USB 3.0 ports 1x RJ45 Dedicated IPMI LAN port 1x VGA port 1x Fast UART 16550 port
BIOS	128Mb SPI Flash EEPROM with AMI BIOS
Cooling	5x 8cm hot-swap redundant PWM cooling fans
USB Ports	3x USB 3.0 ports (2 rear + 1 Type A)
Serial Ports	1x Fast UART 16550 port / 1 Header
LAN Ports	LAN ports via SIOM Add-On-Card 1x RJ45 Dedicated IPMI LAN port
Integrated Graphics	Yes
VGA Ports	1
Trusted Platform Module	1x TPM 1.2 20-pin Header

Marka	Supermicro
Kategori	Storage Server \| Top Loading Storage
Rackmount	2U Rackmount
Processor	2nd Gen Xeon Scalable
Socket	Dual Socket
Sunucu Node Sayısı	1 Node Server
Memory	24 DIMM Slot
Disk Desteği	24 Hot-Swap
NVMe Desteği	4x 2.5" NVMe
HDD Slot	2.5" \| 3.5"
Güç Kaynağı	Yedekli (Redundant)
Global SKU (Aktif Stok)	Hayır
Form Faktör	2U
CPU Desteği	Intel Xeon Gen5 / Gen4
Bellek Desteği	24x DDR4 DIMM
Sürücü Yuvası	24x Hotswap
İşlemci Markası	Intel
