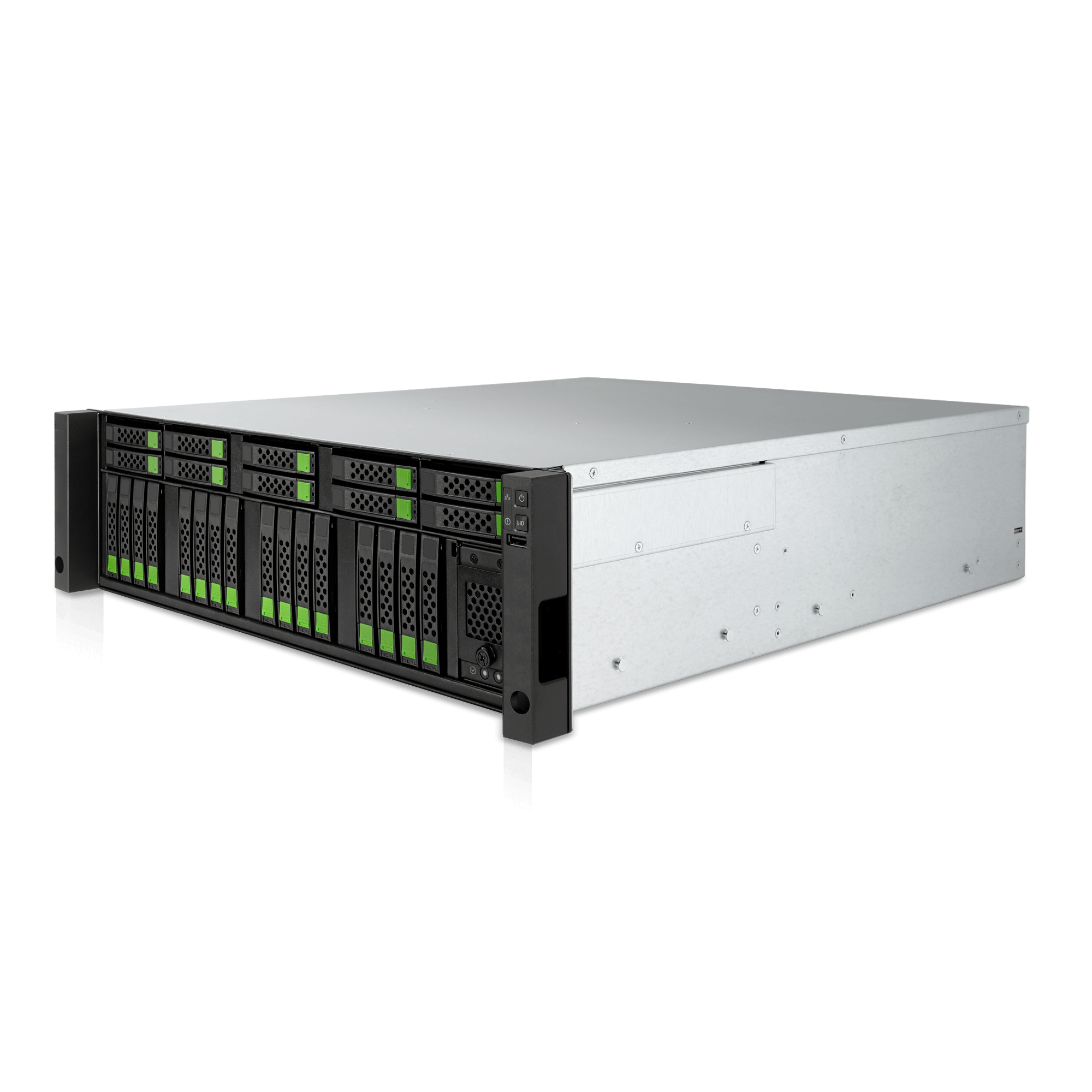

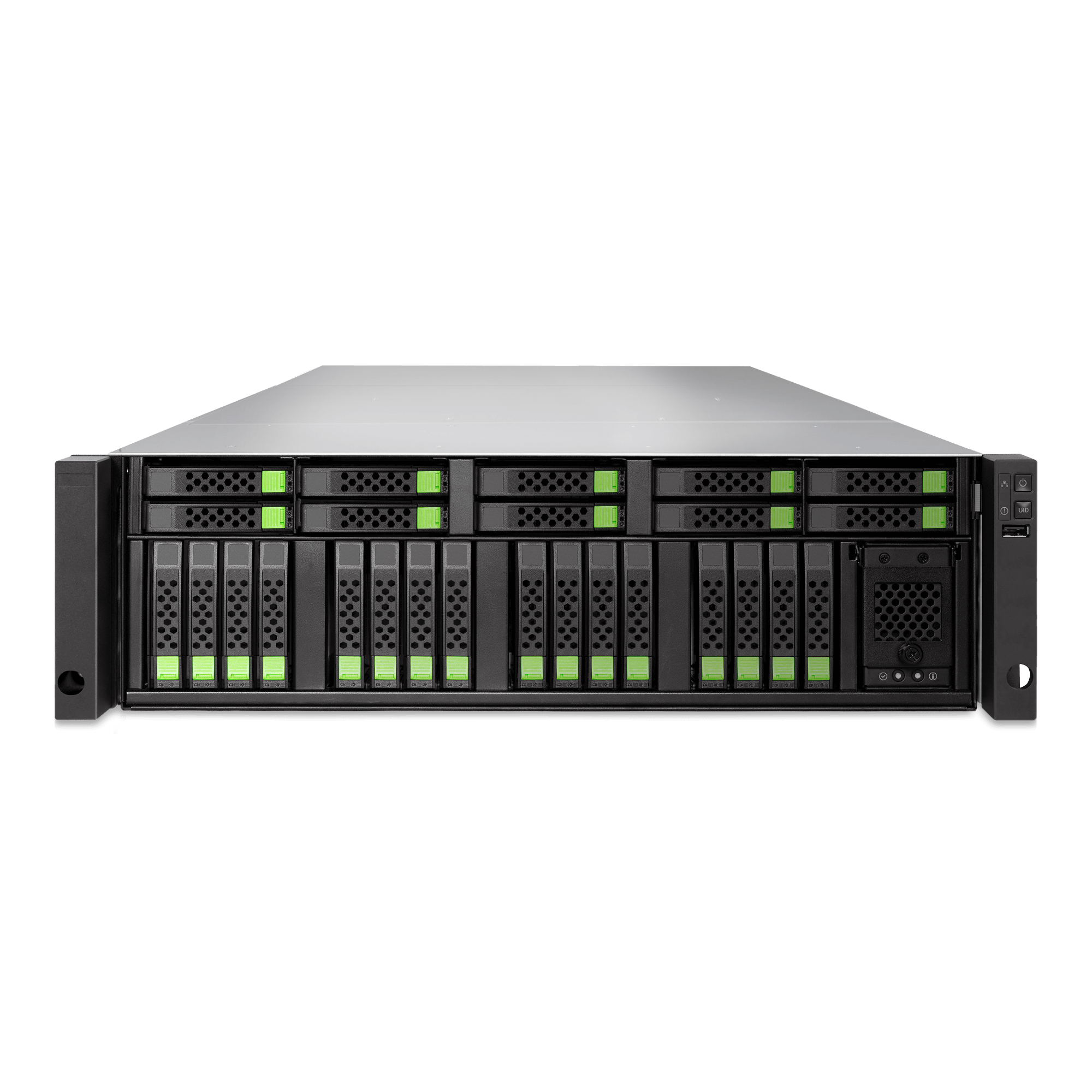

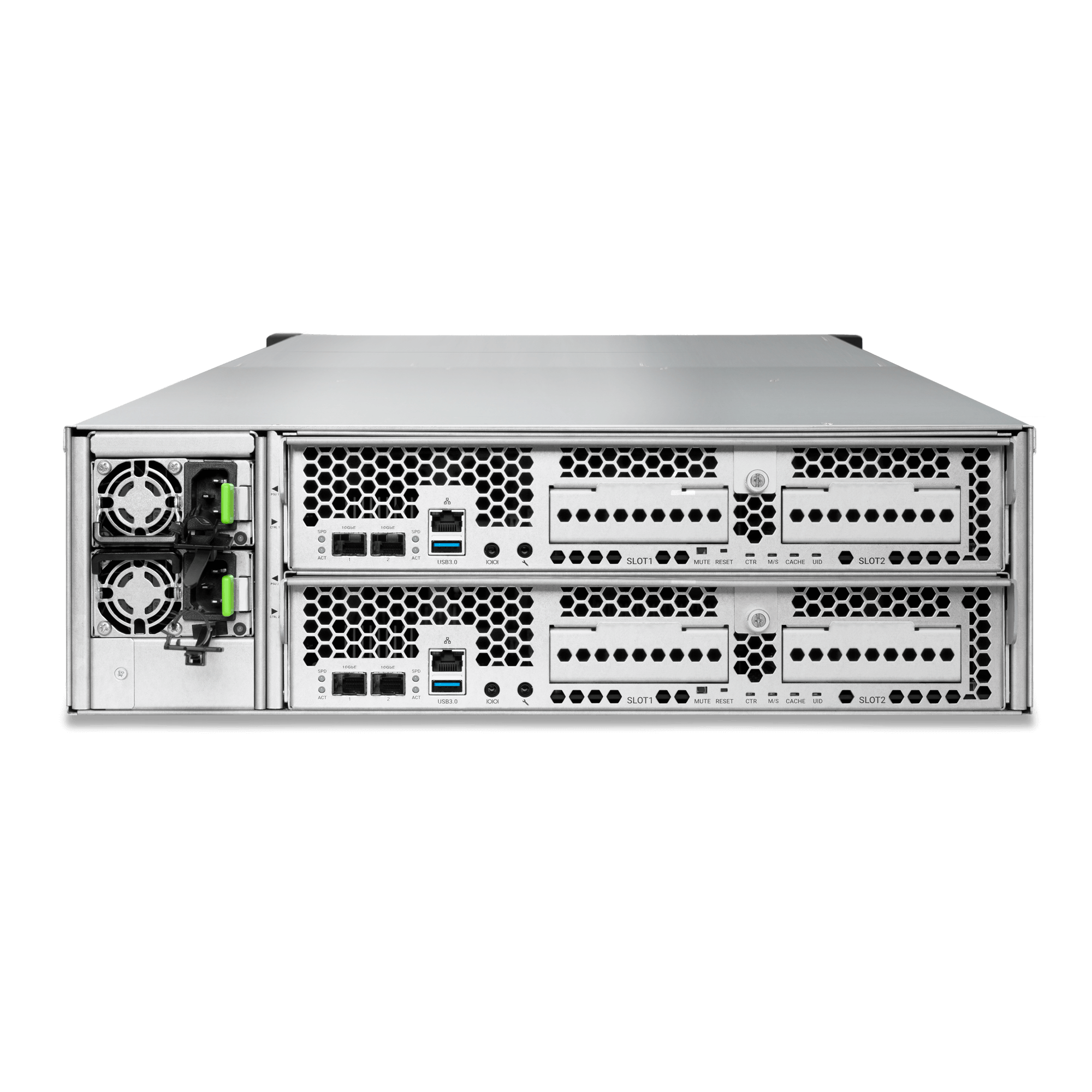

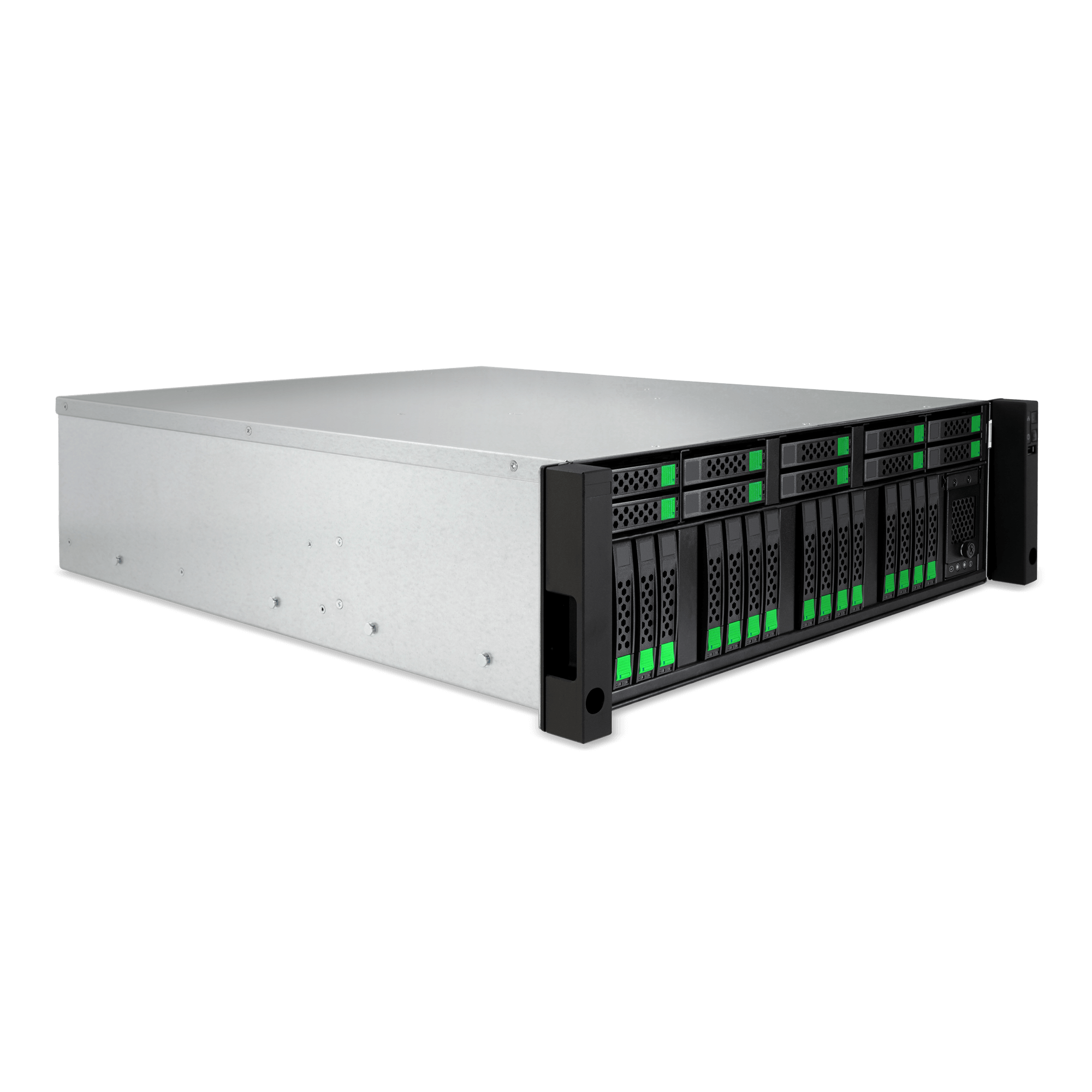

QSAN XCubeFAS XF3126D 3U 26 Bay Dual Controller SFF Rackmount FAS(AFA)
Dual-controller All-NVMe Flash Storage System, Intel Xeon 64-bit 6 core CPU, default 32GB RAM(MAX 768GB RAM), 2X10GbE SFP+, Redundant Power Supply
All Flash, STORAGE
XF3126D QSAN XCubeFAS 3U 26 Bay Dual Controller SFF Rackmount FAS (NVMe AFA)
QSAN XCubeFAS XF3126D 3U 26 Bay Dual Controller SFF Rackmount FAS(AFA)
Dual-controller All-NVMe Flash Storage System, Intel Xeon 64-bit 6 core CPU, default 32GB RAM(MAX 768GB RAM), 2X10GbE SFP+, Redundant Power Supply
Form Faktör
3U
CPU
Intel Xeon Gen3
Disk
26x Hotswap
Stok Sorunuz
Teslim süresi konfigürasyon ve stoğa göre — kesin süre teklifte
Teslim süreleri ürüne, güncel stok durumuna ve ithalat/gümrük süreçlerine göre değişir. Kesin teslim tarihi siparişten önce satış ekibimizce teyit edilir.
Yerinde Destek
Opsiyonel 24/7 Destek
Yerel Stok
Stoktaki ürünlerde öncelikli teslimat
Kurulum
opsiyonel
| Datasheet | QSAN_Data Sheet_XF3126D_2012_(en) |
| Quick Installation Guide | QSAN_Quick Installation Guide_XF3126D_2010_(en) |
| Software Manual | QSAN_Software Manual_XEVO 2.0_2010_(en) |
| Compatibility Matrix | English |
| Hardware Manual | QSAN_Hardware Manual_XCubeFAS series_2012_(en) |
Hardware Specifications
| Architecture | Active-Active dual-controller |
| Storage OS | XEVO Specification Details |
| CPU | |
|---|---|
| Processor | Intel® Xeon® |
| CPU Architecture | 64-bit |
| CPU Frequency | 6-Core |
| Memory | |
| System Flash | - |
| Memory Module Pre-installed | 16GB DDR4 ECC RDIMM |
| Total Memory Slots | 6 |
| Memory Expandable up to | 384GB |
| Notes | Per Controller |
| Storage | |
| Drive Bays | 2.5" Slot x 26 |
| Maximum Drive Bays with Expansion Unit | - |
| Compatible Drive Type | 2.5" U.2 dual port NVMe SSD |
| Drive Interface | NVMe |
| Maximum Internal Raw Capacity | 399TB |
| Maximum Raw Capacity with Expansion Units | - |
| Hot Swappable Drive | |
| Notes |
|
| External Port | |
| USB 2.0 Port | 1 (Front) |
| USB 3.0 Port | 1 (Rear) |
| HDMI Port | - |
| Others | UPS Port x1 Controller port x 1 |
| Notes | Per controller |
| Connectivity Port | |
| 1GbE RJ45 LAN Port | 1 (Onboard Management Port) |
| 10GbE RJ45 LAN Port | 2 iSCSI (Option) |
| 10GbE SFP+ LAN Port | 2 iSCSI (Onboard) 4 iSCSI (Option) |
| Thunderbolt 3 | - |
| 25GbE SFP28 LAN Port | 2 iSCSI (Option) |
| 16Gb SFP+ Fibre Channel | 4 (Option) 2 (Option) |
| 32Gb SFP28 Fibre Channel | 2 (Option) |
| Notes | For more information, please refer to accessory book Please refer to the section below for expansion slot specification |
| Expansion Port | |
| 12Gb/s SAS Wide Port | - |
| Notes | - |
| PCIe Expansion | |
| Gen3x8 Slot | - |
| Gen3x4 Slot | - |
| Notes | - |
| Host Card Expansion | |
| Gen3x8 Slot | 2 |
| Gen2x4 Slot | - |
| Notes | - |
| Appearance | |
| Dimension (H x W x D) (mm) | 132 x 438 x 645 |
| Chassis Form Factor | 19" Rackmount 3U 26 Bay |
| Net Weight (kg) | 25.6 |
| Gross Weight (kg) | 34 |
| Notes | - |
| Memory Protection | |
| Super Capacitor Module + Flash Module | - |
| Battery Backup Module + Flash Module | |
| Notes | - |
| Others | |
| System Fan | 4 pcs (per controller) |
| Replaceable System Fan | |
| Power Recovery | |
| Scheduled Power On/Off | - |
| Wake on LAN/WAN | |
| Power Supply Unit / Adapter | 800W x 2 (80 PLUS Platinum) |
| Redundant Power Supply | |
| AC Input Power Voltage | 100V-240V |
| Power Frequency | 50-60 Hz, Single Phase |
| Power Consumption | 429W |
| British Thermal Unit | - |
| LCM Support | |
| Notes | - |
| Environment Temperature | |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -15°C to 55°C |
| Operating Relative Humidity | 20% to 80% non-condensing |
| Non-operating Relative Humidity | 5% to 95% |
| Notes | - |
| Certification | |
| Certifications | CE FCC BSMI |
| Notes | - |
| Warranty | |
| Standard Warranty | 3 years Battery backup module : 1 year |
Tüm Özellikler
| Form Faktör | 3U |
|---|---|
| CPU Desteği | Intel Xeon Gen3 |
| Sürücü Yuvası | 26x Hotswap |
| İşlemci Markası | Intel |
