QSAN 24 Bay 4U Rackmount NAS XCubeNAS XN7024R
Mid Level, Rackmount NAS, STORAGE
XN7024R QSAN XCubeNAS 24 Bay 4U Rackmount NAS
TEKLİF AL

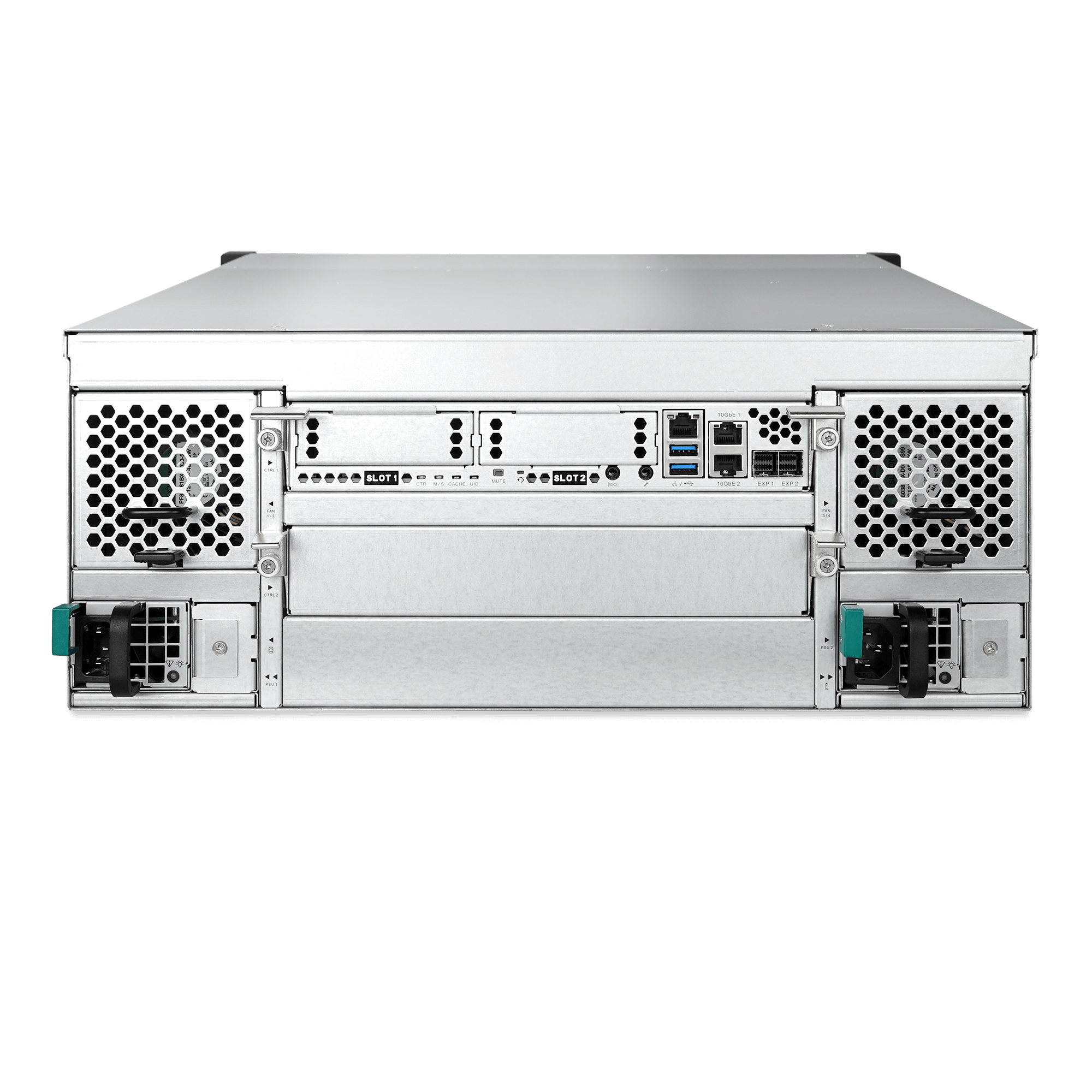

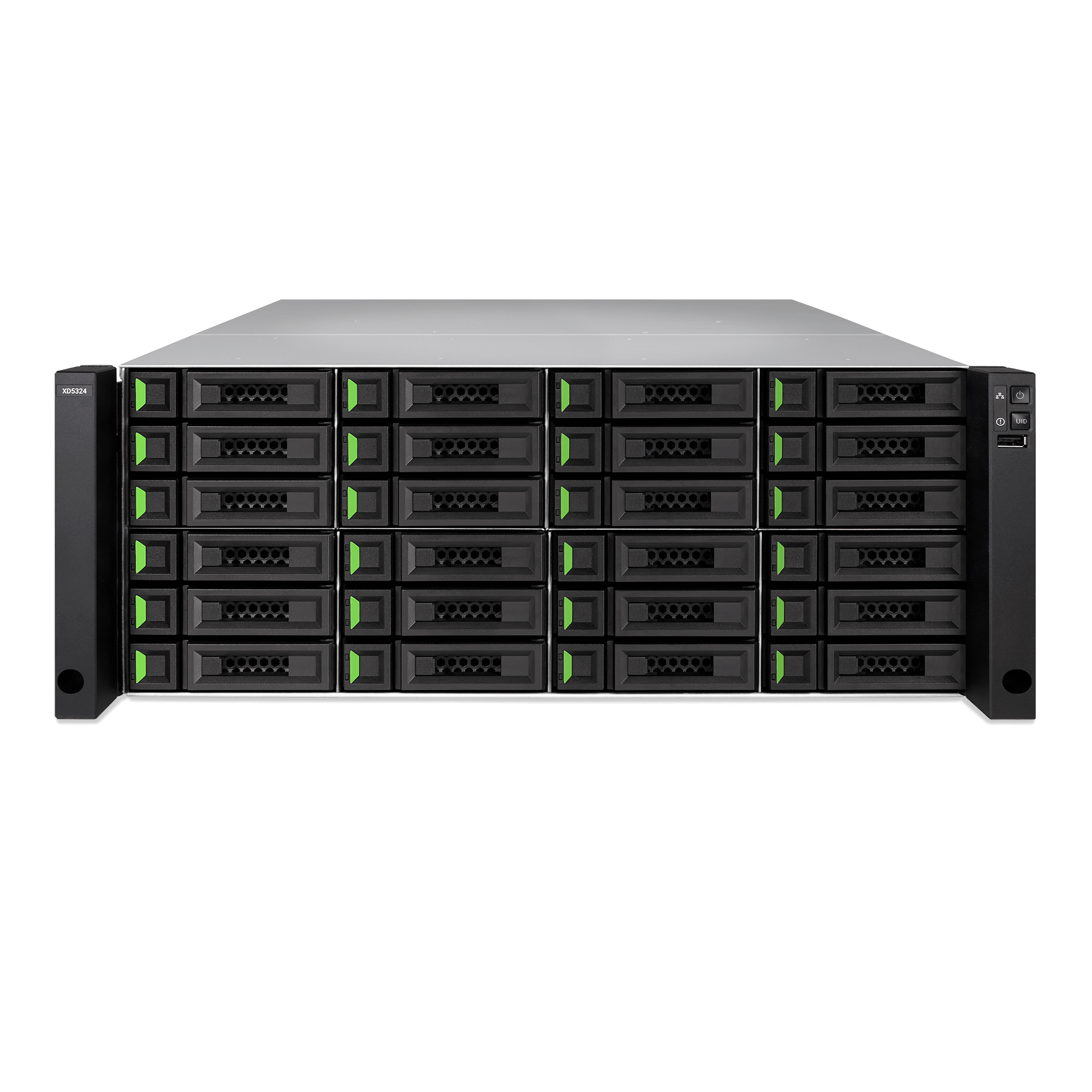

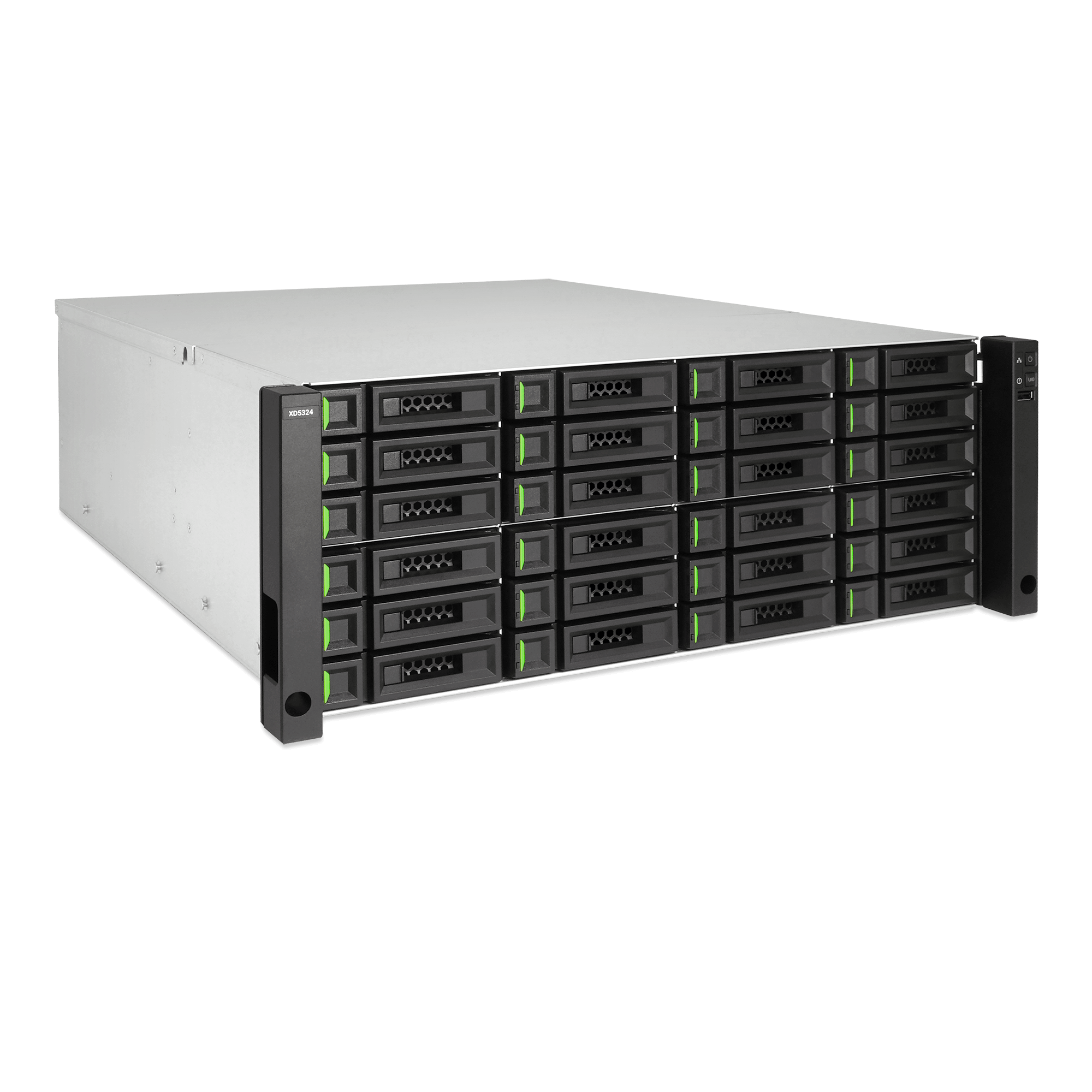

QSAN 24 Bay 4U Rackmount NAS XCubeNAS XN7024R
Form Faktör
4U
CPU
Intel Xeon Gen3
Disk
24x Hotswap
Stok Sorunuz
Teslim süresi konfigürasyon ve stoğa göre — kesin süre teklifte
Teslim süreleri ürüne, güncel stok durumuna ve ithalat/gümrük süreçlerine göre değişir. Kesin teslim tarihi siparişten önce satış ekibimizce teyit edilir.
Yerinde Destek
Opsiyonel 24/7 Destek
Yerel Stok
Stoktaki ürünlerde öncelikli teslimat
Kurulum
opsiyonel
Hardware Specifications
| Architecture | Single Controller |
| Storage OS | QSM 3 Specification Details |
| CPU | |
|---|---|
| Processor | Intel ® Pentium ® |
| CPU Architecture | 64-bit |
| CPU Frequency | Quad-Core 1.6GHz |
| Memory | |
| System Flash | 8GB SATA DOM |
| Memory Module Pre-installed | 8GB DDR4 ECC U-DIMM |
| Total Memory Slots | 4 |
| Memory Expandable up to | 128 GB |
| Notes | - |
| Storage | |
| Drive Bays | 3.5" Slot x 24 |
| Maximum Drive Bays with Expansion Unit | 216 |
| Compatible Drive Type | 3.5" SAS HDD 3.5" SATA HDD 2.5" SAS SSD 2.5" SATA HDD 2.5" SATA SSD |
| Drive Interface | SAS 12Gb/s and SATA 6Gb/s (backward compatible with SAS 6Gb/s and SATA 3Gb/s) |
| Maximum Internal Raw Capacity | 384TB |
| Maximum Raw Capacity with Expansion Units | 3456TB |
| Hot Swappable Drive | |
| Notes |
|
| External Port | |
| USB 2.0 Port | 1 (Front) |
| USB 3.0 Port | 2 (Rear) |
| HDMI Port | - |
| Others | Console Port x1 |
| Notes | - |
| Connectivity Port | |
| 1GbE RJ45 LAN Port | 1 (Onboard) 4 (Option: HQ-01G4T) |
| 10GbE RJ45 LAN Port | 2 (Onboard) 2 (Option: HQ-10G2T) |
| 10GbE SFP+ LAN Port | 4 (Option: HQ-10G4S2) |
| Thunderbolt 3 | - |
| 16Gb SFP+ Fibre Channel | 4 (Option: HQ-16F4S2) 2 (Option: HQ-16F2S2) |
| Notes | For more information, please refer to accessory book Please refer to the section below for expansion slot specification |
| Expansion Port | |
| 12Gb/s SAS Wide Port | 2 (Onboard) |
| Notes | - |
| PCIe Expansion | |
| Gen3x8 Slot | - |
| Gen3x4 Slot | - |
| Notes | - |
| Host Card Expansion | |
| Gen3x8 Slot | 1 |
| Gen2x4 Slot | 1 |
| Notes | Gen2x4 slot provides 20Gb bandwidth |
| Appearance | |
| Dimension (H x W x D) (mm) | 170.3 x 438 x 515 |
| Chassis Form Factor | 19" Rackmount 4U 24 Bay |
| Net Weight (kg) | 26 |
| Gross Weight (kg) | 30.3 |
| Notes | - |
| Memory Protection | |
| Cache-to-Flash Module | - |
| Battery Backup Module + Flash Module | - |
| Notes | - |
| Others | |
| System Fan | 80mm x 80mm x 4 pcs |
| Replaceable System Fan | |
| Power Recovery | |
| Scheduled Power On/Off | |
| Wake on LAN/WAN | |
| Power Supply Unit / Adapter | 770W/850W x 2 (80 PLUS Platinum) |
| Redundant Power Supply | |
| AC Input Power Voltage | 100V-240V |
| Power Frequency | 50-60 Hz, Single Phase |
| Power Consumption | 265 W (Access) 257 W (HDD Hibernation) |
| British Thermal Unit | 902 BTU/hr (Access) 876 BTU/hr (HDD Hibernation) |
| LCM Support | |
| Notes | - |
| Environment Temperature | |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -10°C to 50°C |
| Operating Relative Humidity | 20% to 80% non-condensing |
| Non-operating Relative Humidity | 10% to 90% |
| Notes | - |
| Certification | |
| Certifications | CE FCC BSMI VCCI |
| Notes | - |
| Warranty | |
| Standard Warranty | 3 years |
| Item | Download |
| Application Note | QSM_Connect to Western Digital Ultrastar Hybrid Storage Platform Guide_(en)QSM Deduplication benefits (en)QSM SSD Cache Deployment en)QSM Thin provisioning Deduplication Compression (en)QSM UnifiedAUTH (en) |
| White Paper | QSM_How To Configure LDAP Server (en)QSM_Video Editing Solution (en)QSM_Virtualization Solution (en)QSM_WORM (en)QSM_XMirror (en)QSM_XMirror (sc)QSM_XMirror (tc)QSM_BP-Configure iSCSI on VMware (en)QSM_Backup Applications (en)QSM_Auto Tiering (en) |
| Best Practice Guide | Windows ACL Configuration (en)iSCSI Performance Tuning |
| Datasheet | 简体中文繁體中文English |
| Software Manual | QSM 3 (tc)Unified RESTful API (en)QSM 3 (sc)XReplicator (sc)XReplicator (tc)XReplicator (jp)XReplicator (fr)XReplicator (en)QSM 3 (en)XReplicator (de)XReplicator (kr) |
| Product Guide | 简体中文繁體中文English |
| Accessory Book | English |
| Compatibility Matrix | English |
| Quick Installation Guide | Multi Language |
| Hardware Manual | English简体中文繁體中文 |
Tüm Özellikler
| Form Faktör | 4U |
|---|---|
| CPU Desteği | Intel Xeon Gen3 |
| Sürücü Yuvası | 24x Hotswap |
| İşlemci Markası | Intel |
