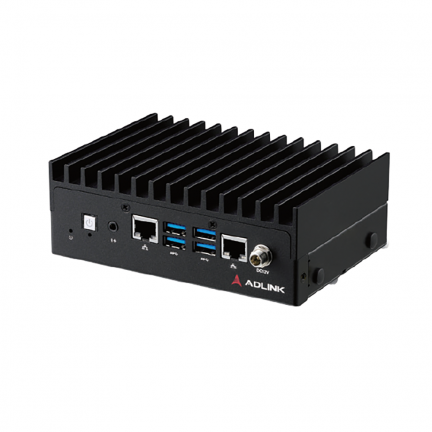

DLAP-211- Nano, uçta AI tabanlı video analizini hedefleyen, avuç içi boyutunda bir Edge AI Çıkarım platformudur. DLAP-211-Nano, MIPI, V-by-One ve USB üzerinden esnek video akışı sağlar ve GPIO üzerinden IoT cihazlarının sensör verilerini ve koordinasyonunu destekler.

SYSTEM CORE
Processor	NVIDIA® Jetson™ Nano
Memory	4GB
eMMC	16GB
GRAPHIC OUTPUT
Graphic Output	1 HDMI 2.0 (w. lock)
FRONT PANEL I/O INTERFACE
Ethernet	2x GbE
USB 3.0	4x Type A
REAR PANEL I/O INTERFACE
USB 2.0	1x OTG
Serial Port	1x COM RS 232
INTERNAL I/O INTERFACE
Mini PCIe	1x PCIe mini-card slot
M.2	M.2 B key 3042 socket
USIM	1x USIM slot
DIO	4 channel DIO
Debug Port	1x debug console
STORAGE DEVICE
SATA Extension	M.2 B key support SATA
SD Card	1xSD
POWER REQUIREMENTS
DC Input	12V
AC Input	Optional 60 W AC-DC adapter
Fail Reset	Reset/recovery button
Power LED Indicator	Power button
MECHANICAL
Antenna Hole	4 x SMA
Dimensions	148(W)x120(D)x49.1(H)mm
Weight	TBD
IP Grade	IP40
Mounting	Wall mount & VESA & din rail
ENVIRONMENTAL
Operating Temperature	Standard -20°C~70°C
Operating Humidity	~95% @40C (non-condensing)
Storage Temperature	-40°C~85°C
