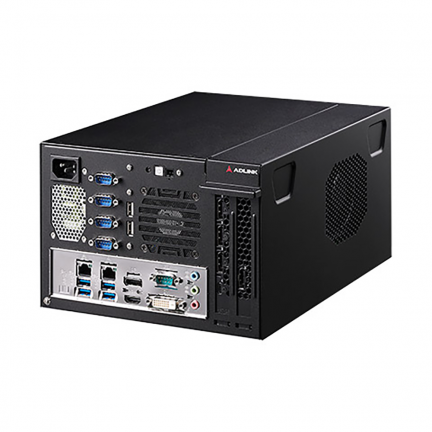

DLAP-4000 Series
Embedded System supporting FHFL dual-width PEG slot with 8/9th Generation Intel Core i7/i5/i3 in LGA1151 socket.
Embedded
DLAP-4000
TEKLİF AL
DLAP-4000 Series
Embedded System supporting FHFL dual-width PEG slot with 8/9th Generation Intel Core i7/i5/i3 in LGA1151 socket.
Stok Sorunuz
Hızlı teslimat seçenekleri mevcut
Yerinde Destek
Opsiyonel 24/7 Destek
Yerel Stok
Major Ürünlerde Hızlı Teslimat
Kurulum
opsiyonel
DLAP-4000 Serisi
LGA1151 soketinde 8. / 9. Nesil Intel Core i7 / i5 / i3 ile FHFL çift genişlikli PEG yuvasını destekleyen Gömülü Sistem.
| SYSTEM CORE | |
| Processor | Intel Core’" i7-9700E, 2.6GH, 12M Cache, 6SW TOP, LGAJ 1SJ, DDR4 2666MH support (8C8T) Intel Core” iS-9500E, 3.0GH, 9M Cache, 6SW TDP, LGA1151, DDR4 2666MH support (6C6T) Intel Core” i3-9100E, 3.1GH, 6M Cache, 65W TDP, LGA1151, DDR4 2666MH support (4C4T) lnLel Core™ i7-9700TE, 1.8GH, 12M Cache, 35W TDP, LGA1 J 51, DDR4 2666MH support (8C8T) Intel Core’" i5-9S00TE, 2.2GH, 9M Cache, 3SW TOP, LGAJ 1S1, DDR4 2666MH support (6C6T) Intel Core’" i3-9100TE, 2.2GH, 6M Cache, 35W TOP, LGA1151, DDR4 2666MH support (4C4T) Intel Core” i7-8700, 3.2GH, 12M Cache, 65W TOP, LGAJ 1SJ, DDR4 2666MH support (6C12T) Intel Core’" i5-8500,3.0GH, 9M Cache, 65W TOP, LGAJ 1S1, DDR4 2666MH support (6C6T) Intel Core’" i3-8100,3.6GH, 6M Cache, 65W TOP, LGA1151, DDR4 2400MH support (4C4T) Intel Core” i7-8700T, 2.4GH 12M Cache, 35W TOP, LGAJ 1S1, DDR4 2666MH support (6CJ 2T) Intel Core’" i5-8S00T, 2.1GH, 9M Cache, 35W TDP, LGA1 J S1, DDR4 2666MH support (6C6T) Intel Core’" i3-8100T, 3.1GH, 6M Cache, 3SW TDP, LGA1151, DDR4 2400MH support (4C4T) |
| Memory | Non-ECC DDR4 26662400MH, 2x SO-DIMM, up Lo 32GB (dependent on CPU) system memory |
| Chipset | Intel H310 Chipset |
| I/O INTERFACES | |
| Display | 1x DI-D connector (rear), resolution up to 1920 x 1200 @ 60 H 1x DP connector (rear), resolution up to 4096 x 2304 @ 60 H 1x HDMI connector (rear) resolution up to 4096 x 2J 60 @ 30 H Additional display outpuL from PEG cards |
| Ethernet | 2x GbE (Realtek RTL8111 G) |
| Serial Ports | 1x RS-23242248S, 4x RS-232 |
| USB | 4x USB 3.1 Gen1 ports, 2x USB 2.0 ports |
| DIO | 1x 8-bit GPIO |
| Mini PCIe | 1x Mini PCle slot (USB 2.0 and PCIe x1) |
| M.2 | 1x M.2 M key (SATA 6Gbs) |
| Expansion slot | 1x PCle x16 slot |
| Audio | Mic-in, Line-out, Line-in |
| TPM 2.0 | Optional |
| STORAGE | |
| 2S SATA | 2x 2.S SATA 6Gbs internal drive bays |
| MECHANICAL | |
| Dimensions | 220 x 300 x 150 mm (W x D x H) |
| POWER SUPPLY | |
| AC Input | 100 to 240 AC |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to 50°C or 0°C to 40°C |
| Humidity | 5 to 90, non-condensing |
| Storage Temperature | -20°C to 60°C |
| Shock | Operating: 20G, 11ms duration, half sine Non-operating: 30G, 11ms duration, half sine |
| EMC | EN5503235, EN61000-6-2-4, CE, FCC Part 15B Class B |
| Safety | ULcUL,CB |
