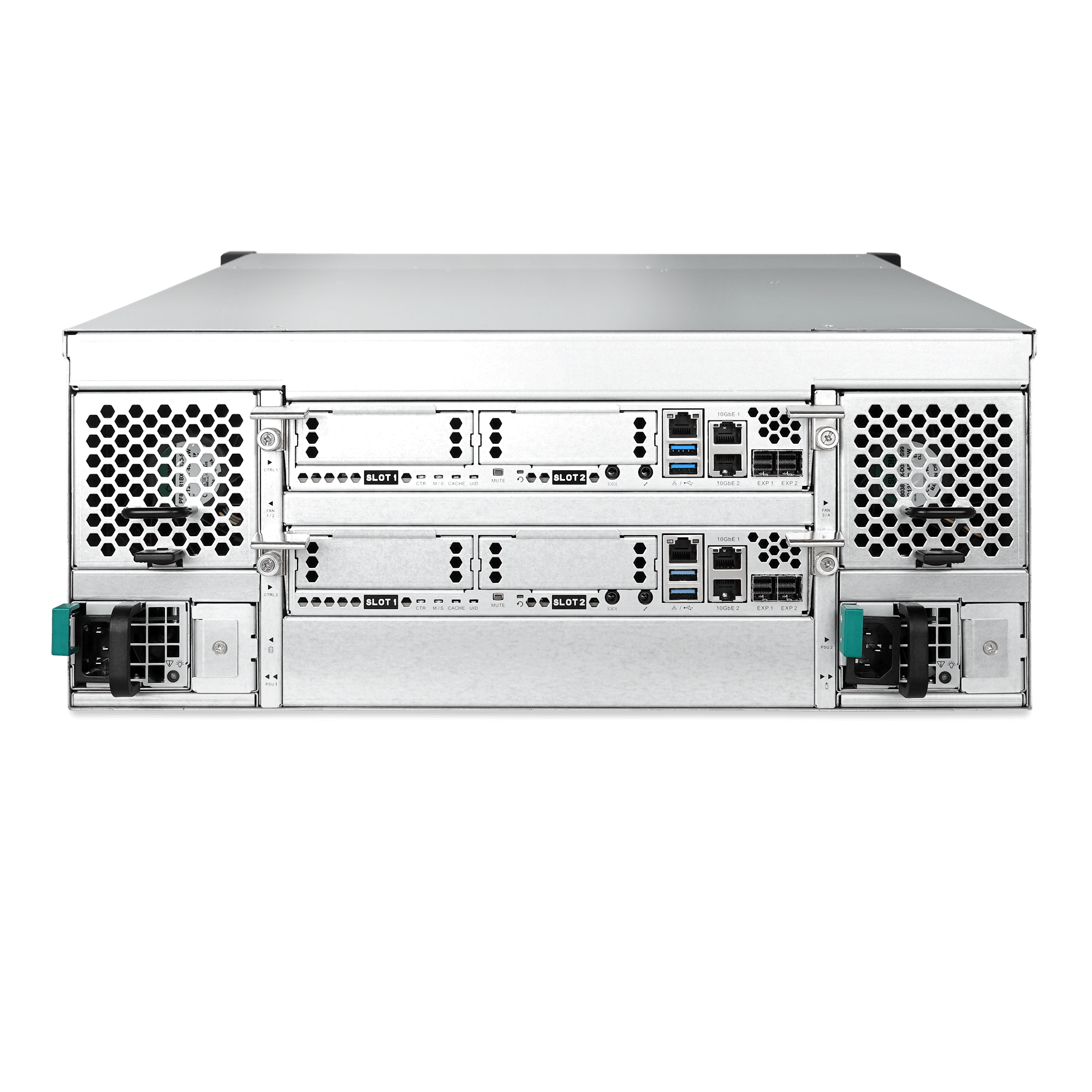

QSAN 24-bay Dual Unified Storage - XCubeNXT XN8024D
STORAGE, Unified SAN & NAS
XN8024D QSAN XCubeNXT 24-bay Dual Unified Storage
QSAN 24-bay Dual Unified Storage – XCubeNXT XN8024D
Form Faktör
4U
CPU
Intel Xeon Gen3
Disk
24x Hotswap
Stok Sorunuz
Teslim süresi konfigürasyon ve stoğa göre — kesin süre teklifte
Teslim süreleri ürüne, güncel stok durumuna ve ithalat/gümrük süreçlerine göre değişir. Kesin teslim tarihi siparişten önce satış ekibimizce teyit edilir.
Yerinde Destek
Opsiyonel 24/7 Destek
Yerel Stok
Stoktaki ürünlerde öncelikli teslimat
Kurulum
opsiyonel
Hardware Specifications
| Architecture | Active-Active dual-controller |
| Storage OS | QSM 3 Specification Details |
| CPU | |
|---|---|
| Processor | Intel® Xeon® |
| CPU Architecture | 64-bit |
| CPU Frequency | Quad-Core (Also support 8 core model) |
| Memory | |
| System Flash | 16GB USB DOM |
| Memory Module Pre-installed | 16GB DDR4 ECC DIMM (per controller) |
| Total Memory Slots | 4 (per controller) |
| Memory Expandable up to | 128GB (per controller) |
| Notes | - |
| Storage | |
| Drive Bays | 3.5" Slot x 24 |
| Maximum Drive Bays with Expansion Unit | 432 |
| Compatible Drive Type | 3.5" SAS HDD 3.5" SAS SED HDD 3.5" NL-SAS HDD 3.5" NL-SAS SED HDD 2.5" SAS SSD 2.5" SAS SED SSD 2.5" SATA SSD 2.5" SATA SED SSD 2.5" SAS HDD 2.5" SAS SED HDD 2.5" NL-SAS HDD 2.5" NL-SAS SED HDD |
| Drive Interface | SAS 12Gb/s |
| Maximum Internal Raw Capacity | 432TB |
| Maximum Raw Capacity with Expansion Units | 7776TB |
| Hot Swappable Drive | |
| Notes |
|
| External Port | |
| USB 2.0 Port | 1 (Front) |
| USB 3.0 Port | 2 (Rear) |
| HDMI Port | - |
| Others | UPS Port x1 Controller port x 1 |
| Notes | - |
| Connectivity Port | |
| 1GbE RJ45 LAN Port | 1 (Onboard) |
| 10GbE RJ45 LAN Port | 2 (Onboard) 2 iSCSI (Option: HQ-10G2T) |
| 10GbE SFP+ LAN Port | 4 iSCSI (Option: HQ-10G4S2) |
| Thunderbolt 3 | - |
| 25GbE SFP28 LAN Port | 2 iSCSI (Option: RHCE25P2) |
| 16Gb SFP+ Fibre Channel | 4 FCP (Option: HQ-16F4S2) 2 FCP (Option: HQ-16F2S2) |
| 32Gb SFP28 Fibre Channel | 2 FCP (Option: RHCF32P2) |
| Notes | For more information, please refer to accessory book Please refer to the section below for expansion slot specification RHCF32P2 Option card will be available soon, please contact us for more detail. |
| Expansion Port | |
| 12Gb/s SAS Wide Port | 2 (Onboard) |
| Notes | - |
| PCIe Expansion | |
| Gen3x8 Slot | - |
| Gen3x4 Slot | - |
| Notes | - |
| Host Card Expansion | |
| Gen3x8 Slot | 1 |
| Gen2x4 Slot | 1 |
| Notes | Gen2x4 slot provides 20Gb bandwidth |
| Appearance | |
| Dimension (H x W x D) (mm) | 170.3 x 438 x 515 |
| Chassis Form Factor | 19" Rackmount 4U 24 Bay |
| Net Weight (kg) | 28.1 |
| Gross Weight (kg) | 32.3 |
| Notes | - |
| Memory Protection | |
| Cache-to-Flash Module | |
| Battery Backup Module + Flash Module | - |
| Notes | Does not need Battery Backup Module |
| Others | |
| System Fan | 4 pcs |
| Replaceable System Fan | |
| Power Recovery | |
| Scheduled Power On/Off | - |
| Wake on LAN/WAN | |
| Power Supply Unit / Adapter | 770W/850W x 2 (80 PLUS Platinum) |
| Redundant Power Supply | |
| AC Input Power Voltage | 100V-240V |
| Power Frequency | 50-60 Hz, Single Phase |
| Power Consumption | 648W |
| British Thermal Unit | 2,211BTU |
| LCM Support | |
| Notes | - |
| Environment Temperature | |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -10°C to 50°C |
| Operating Relative Humidity | 20% to 80% non-condensing |
| Non-operating Relative Humidity | 10% to 90% |
| Notes | - |
| Certification | |
| Certifications | CE FCC CCC BSMI VCCI KCC |
| Notes | - |
| Warranty | |
| Standard Warranty | 3 years |
| Item | Download |
| Best Practice Guide | How to Adjust Performance in VMware_2007_(en)How to Adjust Performance in Windows_2007_(en)How to Adjust Performance in Linuxs_2007_(en) |
| Software Manual | XReplicator (kr)XReplicator (jp)XReplicator (fr)XReplicator (en)XReplicator (de)XReplicator (sc)XReplicator (tc)QSAN_XCubeNXT_Software Manual.pdf |
| White Paper | QSM_WORM (en)QSM_Backup Applications (en)XCubeNXT_Performance Tuning_2007_(en)QSM_Virtualization Solution (en)QSM_XMirror (tc)QSM_XMirror (sc)QSM_XMirror (en) |
| Product Guide | QSAN_Product Guide_XN8000D_2011_(en) |
| Compatibility Matrix | English |
| Application Note | QSM_Connect to Western Digital Ultrastar Hybrid Storage Platform Guide_(en)QSM Deduplication benefits (en) |
| Hardware Manual | QSAN_Hardware Manual_XCubeNXT_(en) |
| Quick Installation Guide | Multi Language |
| Datasheet | English简体中文繁體中文 |
Tüm Özellikler
| Form Faktör | 4U |
|---|---|
| CPU Desteği | Intel Xeon Gen3 |
| Sürücü Yuvası | 24x Hotswap |
| İşlemci Markası | Intel |
